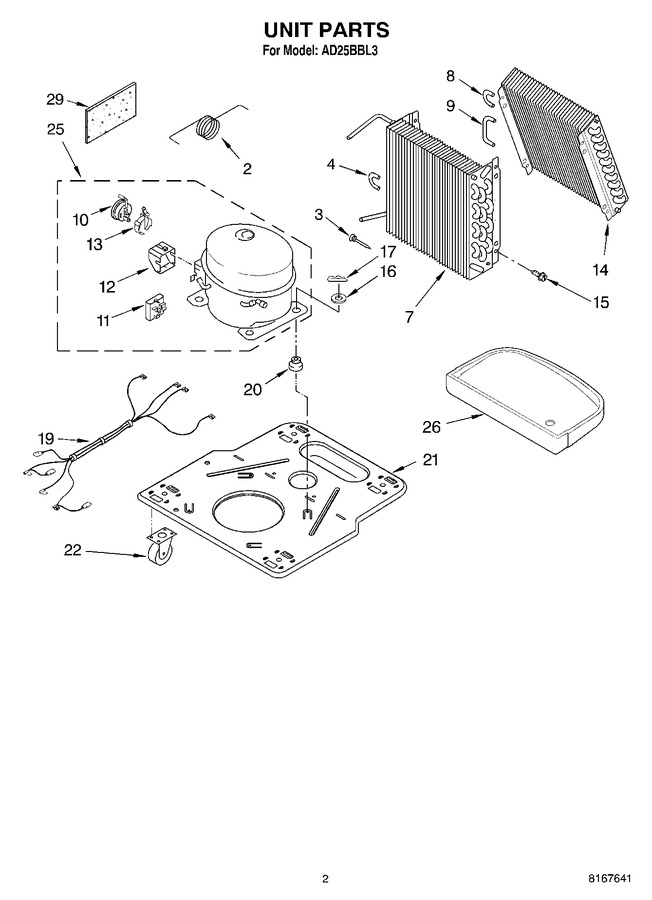

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1184271		Tube, Restrictor		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
4	8031222		Bend, Return (5)		Appelez-nous	-
7	1184759		Condenser		Appelez-nous	-
8	708531		Bend, Return (2)		Appelez-nous	-
9	1184941		Tube, Riser		Appelez-nous	-
10	1184416		Overload, Protector		Appelez-nous	-
11	1184725		Relay, Start		Appelez-nous	-
12	1182781		Cover, Terminal		Appelez-nous	-
13	1184415		Retainer, Cover		Appelez-nous	-
14	1184764		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.56
16	680975		Washer		Appelez-nous	-
17	24364001		Clip, Compressor		Appelez-nous	-
19	1186210		Harness, Wire		Appelez-nous	-
20	1168722		Grommet (4)		Appelez-nous	-
21	1168654		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1184723		Compressor, (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
29	1184625		Insulation (restrictor Tube)		Appelez-nous	-
