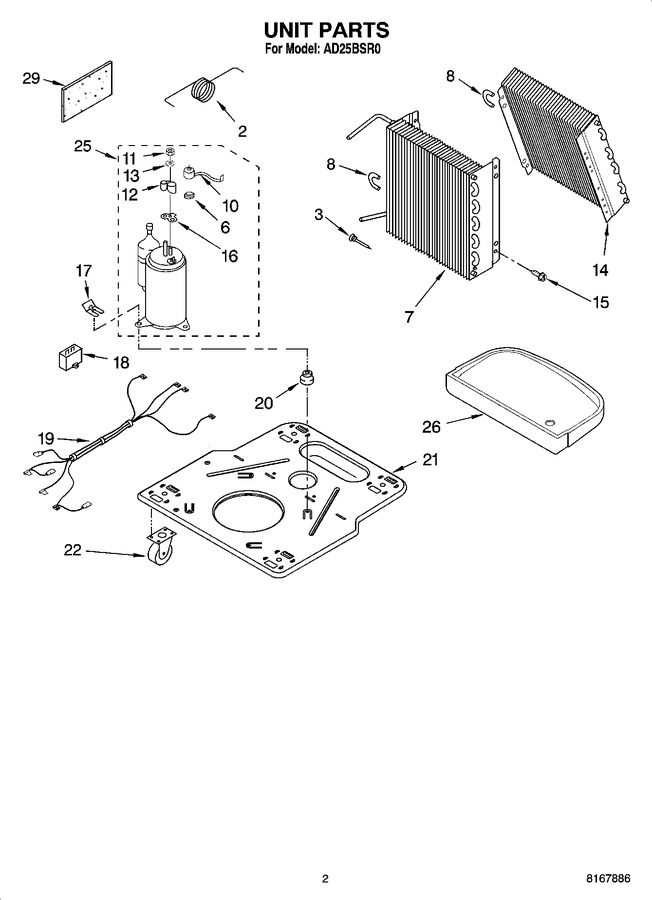

01 - Air Flow And Control Parts
02 - Unit Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1168734 | Tube, Restrictor |
|
- | |||||
| 3 | WP1162526 | Strainer (Replaces: 1162526) |
|
$ 75.98 | |||||
| 6 | 1185795 | Spring, Overload |
|
- | |||||
| 7 | 1187540 | Condenser |
|
- | |||||
| 8 | 708531 | Bend, Return (2) |
|
- | |||||
| 10 | 1188185 | Overload, Protector |
|
- | |||||
| 11 | W10833054 | Nut, Terminal Cover (Replaces: 1186030) |
|
- | |||||
| 12 | 1185792 | Cover, Terminal |
|
- | |||||
| 13 | 1185794 | Washer, Nut |
|
- | |||||
| 14 | 1186718 | Evaporator |
|
- | |||||
| 15 | WP489069 | Screw, 8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 16 | 1185793 | Gasket, Terminal Cover |
|
- | |||||
| 17 | 8011446 | Clip, Compressor |
|
- | |||||
| 18 | 1188137 | Capacitor |
|
- | |||||
| 19 | 1186726 | Harness, Wire |
|
- | |||||
| 20 | 950212 | Grommet (3) |
|
- | |||||
| 21 | 1186674 | Base |
|
- | |||||
| 22 | 1164241 | Caster (4) |
|
- | |||||
| 25 | 1188172 | Compressor, (complete Assembly) |
|
- | |||||
| 26 | 1168761 | Pan, Drain |
|
- | |||||
| 29 | 1184625 | Insulation (restrictor Tube) |
|
- |
