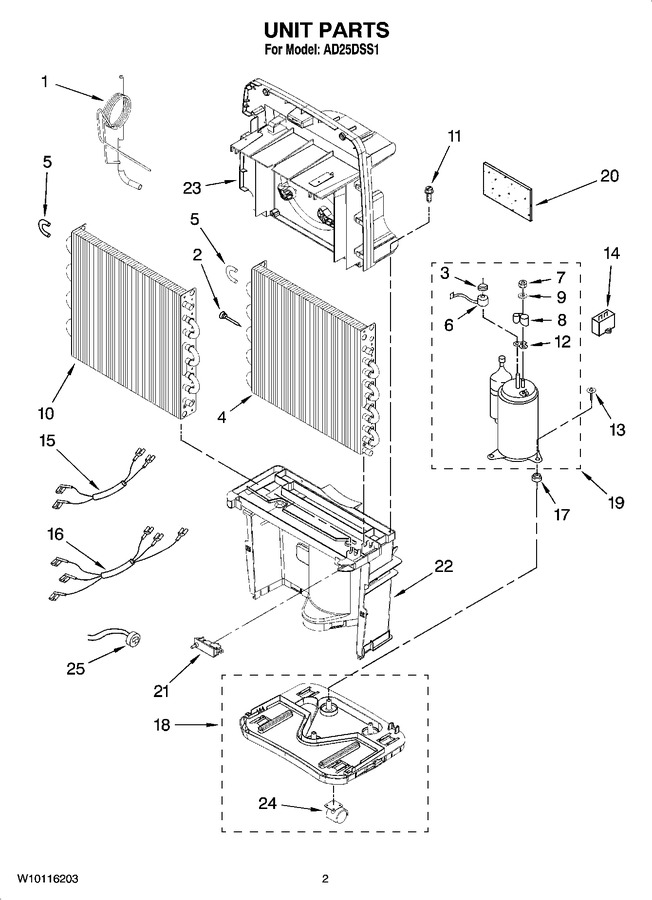

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1188520		Tube, Restrictor		Appelez-nous	-
2	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
3	1185795		Spring, Overload		Appelez-nous	-
4	1188480		Condenser		Appelez-nous	-
5	8031222		Bend, Return		Appelez-nous	-
6	1188185		Overload, Protector		Appelez-nous	-
7	W10833054		Nut, Terminal Cover   (Replaces: 1186030)		Appelez-nous	-
8	1188822		Cover, Terminal		Appelez-nous	-
9	1185794		Washer, Nut		Appelez-nous	-
10	1188439		Evaporator		Appelez-nous	-
11	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
12	1185793		Gasket, Terminal Cover		Appelez-nous	-
13	W10001320		Screw, Compressor		Appelez-nous	-
14	1188477		Capacitor		Appelez-nous	-
15	1188467		Wire Harness, Compressor (2 Wire)		Appelez-nous	-
16	1188468		Wire Harness, Compressor (3 Wire)		Appelez-nous	-
17	1188564		Grommet, Compressor		Appelez-nous	-
18	1188558		Base				$ 34.40
19	1188554		Compressor, (complete Assembly)		Appelez-nous	-
20	1182480		Putty, Sound Damping		Appelez-nous	-
21	1188814		Switch, Bucket Fill/check				$ 107.73
22	1188559		Support, Lower		Appelez-nous	-
23	1188561		Support, Upper		Appelez-nous	-
24	1188415		Caster		Appelez-nous	-
25	1188823		Bi-metal, Defrost		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
