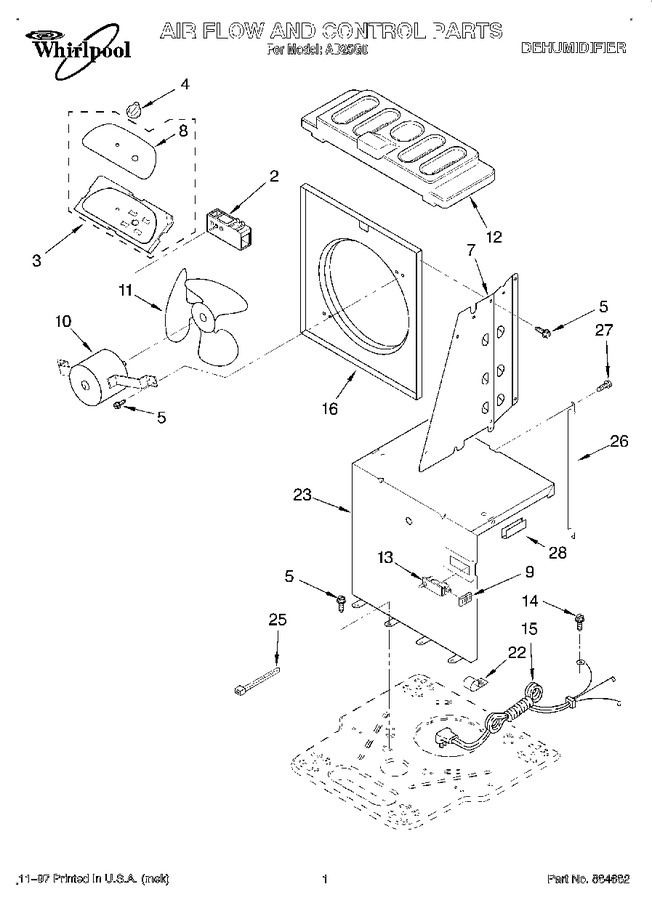

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 1168670 | Humidistat, Control |
|
$ 56.42 | |||||
| 3 | 1168814 | Assembly, Control Panel |
|
- | |||||
| 4 | 1168687 | Knob |
|
- | |||||
| 5 | WP489069 | Screw, S.m.no.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 7 | 1168758 | Panel, Air System (left Side) |
|
- | |||||
| 7 | 1168759 | Panel, Air System (right Side) |
|
- | |||||
| 8 | 1168842 | Escutcheon |
|
- | |||||
| 9 | 1168781 | Barrier, Bucket Fill Switch |
|
- | |||||
| 10 | 1168811 | Motor, Fan |
|
- | |||||
| 11 | 1168731 | Blade, Fan |
|
- | |||||
| 12 | 1168681 | Cover, Air System |
|
- | |||||
| 13 | 1168699 | Switch, Bucket Fill/check |
|
- | |||||
| 14 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 15 | 1168703 | Cord, Appliance |
|
- | |||||
| 16 | 1168666 | Plate, Orifice |
|
- | |||||
| 22 | 1180504 | Relief, Strain |
|
- | |||||
| 23 | 1168735 | Support, Air System |
|
- | |||||
| 25 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 26 | 1168752 | Brace, Support |
|
- | |||||
| 27 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 28 | 1180634 | Guard, Edge |
|
- |
