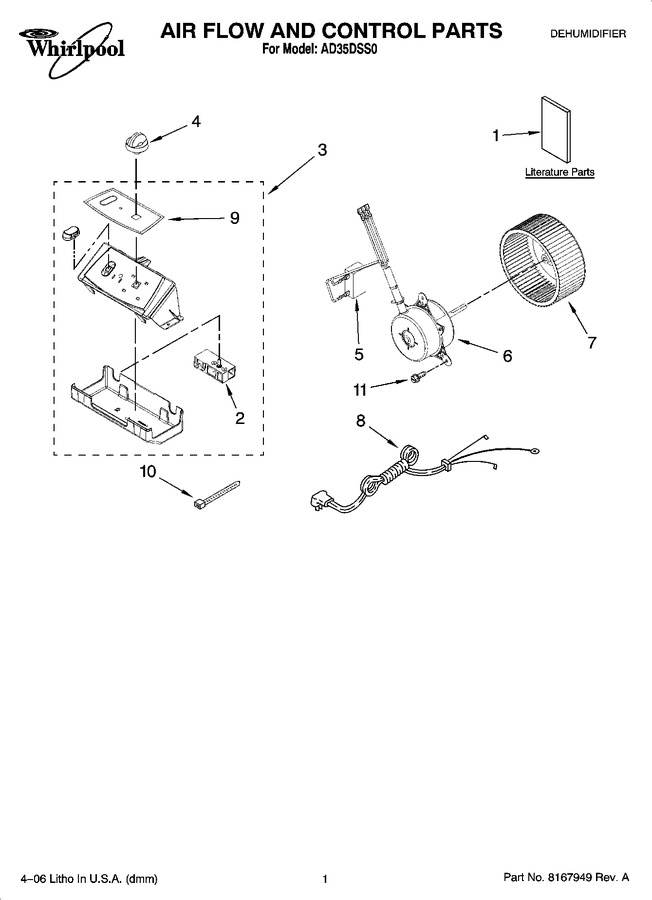

01 - Air Flow And Control Parts
02 - Unit Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1188574 | Wiring Diagram |
|
- | |||||
| 1 | 1188421 | Use & Care Guide |
|
- | |||||
| 2 | 1168670 | Humidistat, Control |
|
$ 56.42 | |||||
| 3 | 1188456 | Assembly, Control Panel |
|
$ 19.72 | |||||
| 4 | 1187163 | Knob |
|
$ 33.97 | |||||
| 5 | WP1188476 | Capacitor, Fan (Replaces: 1188476) |
|
$ 161.11 | |||||
| 6 | 1188411 | Motor, Fan |
|
$ 210.40 | |||||
| 7 | 1188416 | Wheel, Blower |
|
- | |||||
| 8 | 1188470 | Cord, Appliance |
|
- | |||||
| 9 | 1188457 | Overlay |
|
- | |||||
| 10 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 11 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 7.92 |
