SELECT A DIAGRAM

1 - Microwave Control Panel


2 - Microwave Body Parts


3 - Microwave Door


4 - Microwave Enclosure


5 - Body With Microwave Support


6 - Door


7 - Door Lock


8 - Convection Fan

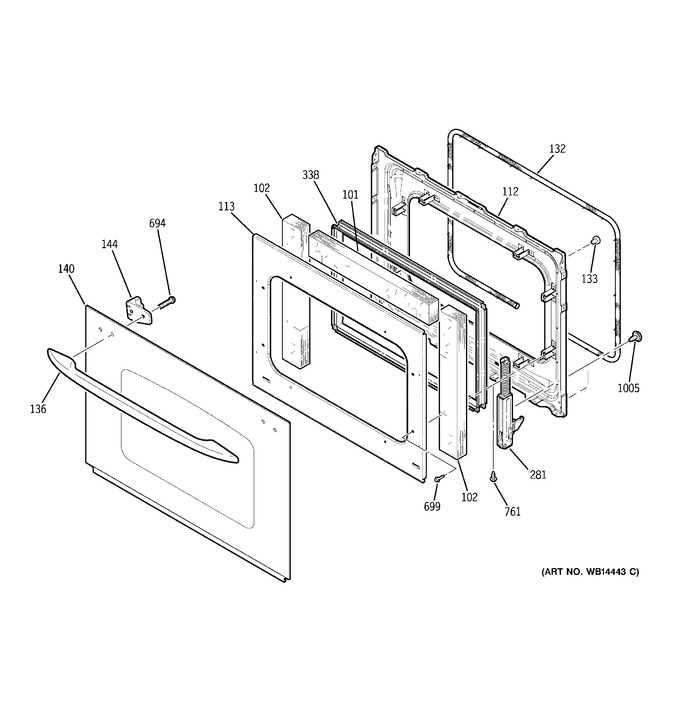

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35T10072		Insulation Ovn Dr Top		Appelez-nous	-
102	WB35T10135		Insulation Door		Appelez-nous	-
112	WB55T10183		Lining Ovn Dr Asm		Appelez-nous	-
113	WB02T10371		Retainr Insln Ovn Dr Lwr		Appelez-nous	-
132	WG02F04646		Gasket Ovn Dr   (Replaces: WB32T10014)				$ 68.16
133	WG02F03972		Frt Fr Door Bumper   (Replaces: WB01T10022)				$ 5.72
136	WB15T10138		Handle Prf Door Wh		Appelez-nous	-
136	WB15T10136		Handle Prf Door Bk		Appelez-nous	-
140	WB56T10265		Door Otr Asm 30 (wh)		Appelez-nous	-
140	WB56T10263		Door Otr Asm 30 (bk)		Appelez-nous	-
144	WG02A01198		Bracket Reinforcement 30   (Replaces: WB02T10375)				$ 35.60
281	WB10T10115		Hinge Door Lt		Appelez-nous	-
281	WB10T10114		Hinge Door Rt		Appelez-nous	-
338	WG02A01873		Pack Window Asm Lwr   (Replaces: WB56T10105)			Immediately	$ 130.91
694	WG02A00773		Screw 10-16 X 1.000 Hwh   (Replaces: WB01T10066)				$ 4.20
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
