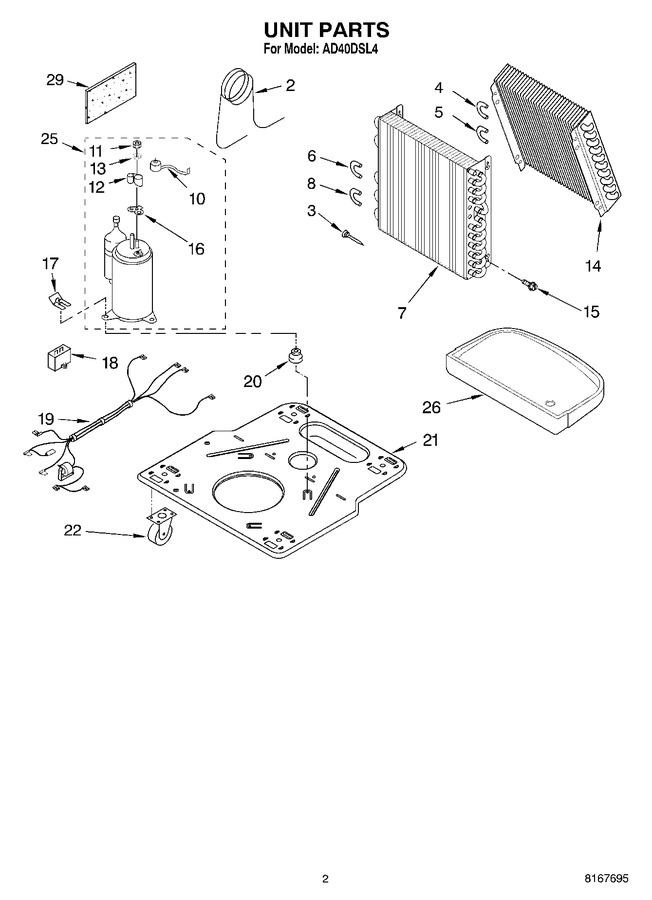

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1186761		Tube, Restrictor (length 44.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
4	708532		Bend, Return (7)		Appelez-nous	-
5	708531		Bend, Return (1)		Appelez-nous	-
6	8031223		Bend, Return (9)		Appelez-nous	-
7	1186752		Condenser		Appelez-nous	-
8	8031222		Bend, Return (1)		Appelez-nous	-
10	1186982		Overload, Protector		Appelez-nous	-
11	W10833054		Nut, Terminal Cover   (Replaces: 1186128)		Appelez-nous	-
12	1184748		Cover, Terminal		Appelez-nous	-
13	1182120		Gasket, Nut		Appelez-nous	-
14	1186754		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.56
16	1182118		Gasket, Terminal Cover		Appelez-nous	-
17	8011446		Clip, Compressor		Appelez-nous	-
18	1187008		Capacitor		Appelez-nous	-
19	1187006		Harness, Wire (with De-icer)				$ 70.09
20	1186709		Grommet (3)		Appelez-nous	-
21	1186674		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1186705		Compressor, (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
29	1184625		Insulation (restrictor Tube)		Appelez-nous	-
