Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 1168670 Humidistat, Control Special Order $ 56.42

3 1168770 Assembly, Control Panel Appelez-nous -
4 1168687 Knob Appelez-nous -
5 WP489069 Screw, S.m.no.8 X 1/2   (Replaces: 488480) In-Stock Immediately $ 7.56

7 1168758 Panel, Air System (left Side) Appelez-nous -
7 1168759 Panel, Air System (right Side) Appelez-nous -
8 1168843 Escutcheon Appelez-nous -
9 1168781 Barrier, Bucket Fill Switch Appelez-nous -
10 4389130 Motor, Fan   (Replaces: 1168730) Special Order $ 321.69

11 1168731 Blade, Fan Appelez-nous -
12 1168681 Cover, Air System Appelez-nous -
13 1168699 Switch, Bucket Fill/check Appelez-nous -
14 WPW10141604 Screw, 8-32 X 3/8   (Replaces: 487871) Special Order $ 7.97

15 1168703 Cord, Appliance Appelez-nous -
16 1168666 Plate, Orifice Appelez-nous -
22 1180504 Relief, Strain Appelez-nous -
23 1168735 Support, Air System Appelez-nous -
25 WPW10339879 Tie, Cable   (Replaces: 857547) Special Order $ 7.47

26 1168752 Brace, Support Appelez-nous -
27 WP489069 Screw, 8-18 X 3/8   (Replaces: 1157158) In-Stock Immediately $ 7.56

28 1180634 Guard, Edge Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

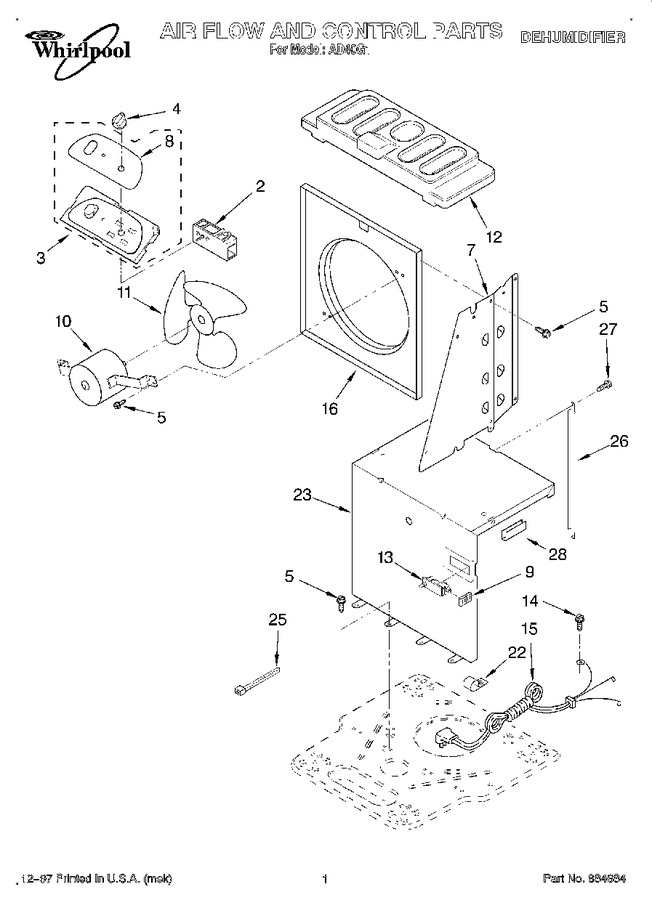

Diagram for AD40G1
