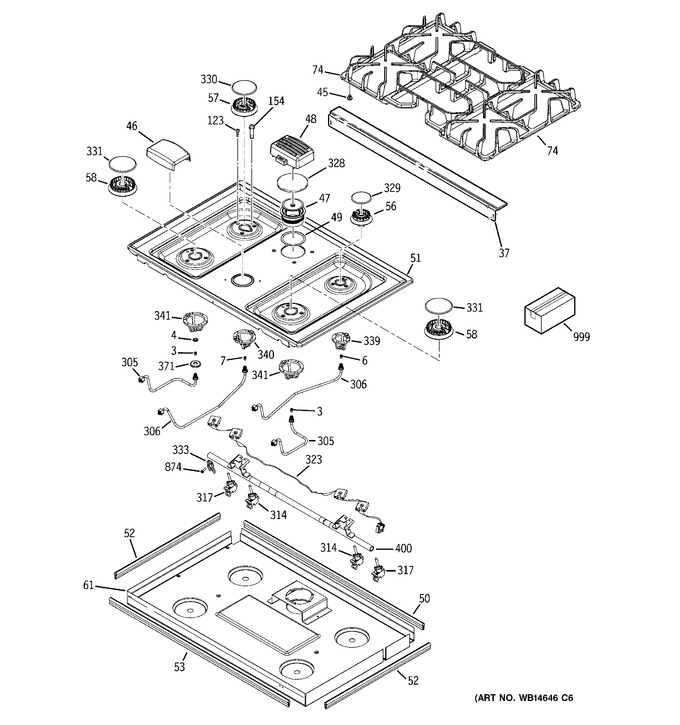

1 - Gas & Burner Parts
2 - Cooktop
3 - Body Parts
4 - Door
5 - Door Lock
6 - Control Panel & Cooling Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WS01F01390 | Orifice-lp Lf/rf 9500 (Replaces: WB28K10032) |
|
$ 11.44 | |||||
| 3 | WG02F02884 | Orifice-ng Lf/ Rf (Replaces: WB28K10030) |
|
$ 23.22 | |||||
| 4 | WS01A01130 | Economic Nut (Replaces: WB01K10037) |
|
Immediately | $ 14.65 | ||||
| 6 | WS01F01388 | Orifice-lp Rr (Replaces: WB28K10031) |
|
$ 25.73 | |||||
| 6 | WG02F02883 | Orifice-ng Rr (Replaces: WB28K10029) |
|
$ 9.25 | |||||
| 7 | WS01F01422 | Orifice Spud Lp Lr (Replaces: WB28K10215) |
|
$ 11.44 | |||||
| 7 | WB28K10329 | Orifice Spud Ng Lr |
|
- | |||||
| 37 | WB07T10680 | Kit Flr Mt (wb07t10680) |
|
- | |||||
| 45 | WG03A00018 | Grate Foot (Replaces: WB02T10461) |
|
Immediately | $ 6.52 | ||||
| 46 | WB31T10118 | Cover (bk) |
|
- | |||||
| 47 | WB38T10023 | Vent Cap |
|
- | |||||
| 48 | WB31T10114 | Cover Vent (bk) |
|
- | |||||
| 49 | WB04T10055 | Gasket Vent |
|
- | |||||
| 50 | WG02L02012 | Gasket Maintop Rh (Replaces: WB02T10319) |
|
$ 14.29 | |||||
| 50 | WG02L02011 | Gasket Maintop Lh (Replaces: WB02T10320) |
|
Immediately | $ 11.44 | ||||
| 51 | WB62T10428 | Maintop Asm Bk |
|
- | |||||
| 52 | WB04T10052 | Gasket Burner Box |
|
- | |||||
| 53 | WG02F06007 | Gasket Burner Box (Replaces: WB04T10051) |
|
$ 48.68 | |||||
| 56 | WS01F02309 | Small Burner V 5k (Replaces: WB16K10070) |
|
Immediately | $ 24.21 | ||||
| 57 | WS01F02306 | Burner Medium (9500) (Replaces: WB16K10055) |
|
Immediately | $ 82.59 | ||||
| 58 | WS01F02300 | Burner-large 12k (Replaces: WB16T10046) |
|
Immediately | $ 86.48 | ||||
| 61 | WB64T10054 | Bottom Burn Box |
|
- | |||||
| 74 | WG02L02052 | Grate Cast Asm (Replaces: WB31T10111) |
|
$ 220.62 | |||||
| 123 | WS01A01213 | Screw Cktp (Replaces: WB01K10008) |
|
Immediately | $ 3.57 | ||||
| 154 | WB13K10014 | Electrode Top |
|
- | |||||
| 305 | WB28T10143 | Tube Asm Lt Frt |
|
- | |||||
| 305 | WB28T10140 | Tube Asm Rt Frt |
|
- | |||||
| 306 | WB28T10141 | Tube Asm Rt Rr |
|
- | |||||
| 306 | WB28T10142 | Tube Asm Lt Rr |
|
- | |||||
| 314 | WG02A02820 | Valve Gas Lf (Replaces: WB19T10036) |
|
$ 126.62 | |||||
| 317 | WG02F06009 | Valve Gas Lr (Replaces: WB19T10042) |
|
$ 93.66 | |||||
| 323 | WB18T10343 | Harness Switch |
|
- | |||||
| 328 | WB13T10035 | Burner Cap Bk Med |
|
- | |||||
| 329 | WS01F02533 | Cap-burner Small (blk) (Replaces: WB29K10009) |
|
Immediately | $ 10.36 | ||||
| 330 | WS01F02537 | Cap-burner Med (blk) (Replaces: WB29K10001) |
|
Immediately | $ 12.86 | ||||
| 331 | WG02F02915 | Cap-burner Large (blk) (Replaces: WB29K10006) |
|
$ 25.73 | |||||
| 333 | WB6X93 | Valve Clamp |
|
- | |||||
| 339 | WS01A00976 | Ckt Bracket Sm (Replaces: WB02K10079) |
|
$ 10.28 | |||||
| 340 | WS01A00977 | Ckt Bracket Mid (Replaces: WB02K10078) |
|
$ 13.04 | |||||
| 341 | WS01A00583 | Ckt Bracket Lg (Replaces: WB02K10080) |
|
$ 13.77 | |||||
| 371 | WB04T10053 | Seal Burner Box |
|
- | |||||
| 400 | WB28T10139 | Pipe Manifold |
|
- | |||||
| 874 | WB1X1428 | Screw |
|
- | |||||
| 999 | 49-80535 | Manual Use & Care |
|
- | |||||
| 999 | 31-10601 | Instruction Lp |
|
- | |||||
| 999 | 31-10675 | Instruction Install |
|
- | |||||
| 999 | 31-10737 | Instruc Install French |
|
- | |||||
| 999 | 31-10738 | Instruc Install Spanish |
|
- | |||||
| 999 | 31-14265 | Manual Mini & Wd Asm |
|
- | |||||
| 999 | WB18T10373 | Harness Wire Burner |
|
- |
