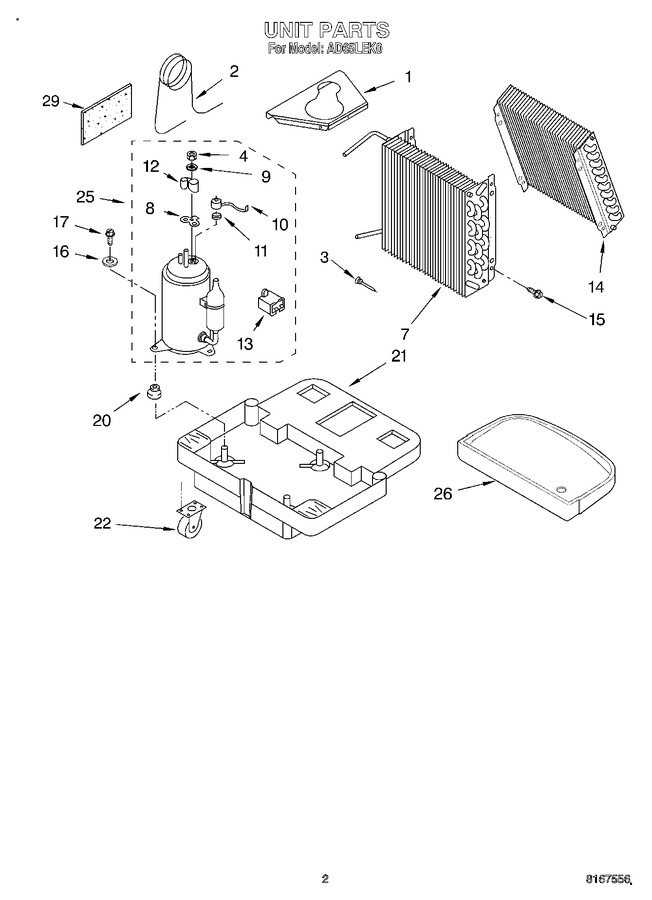

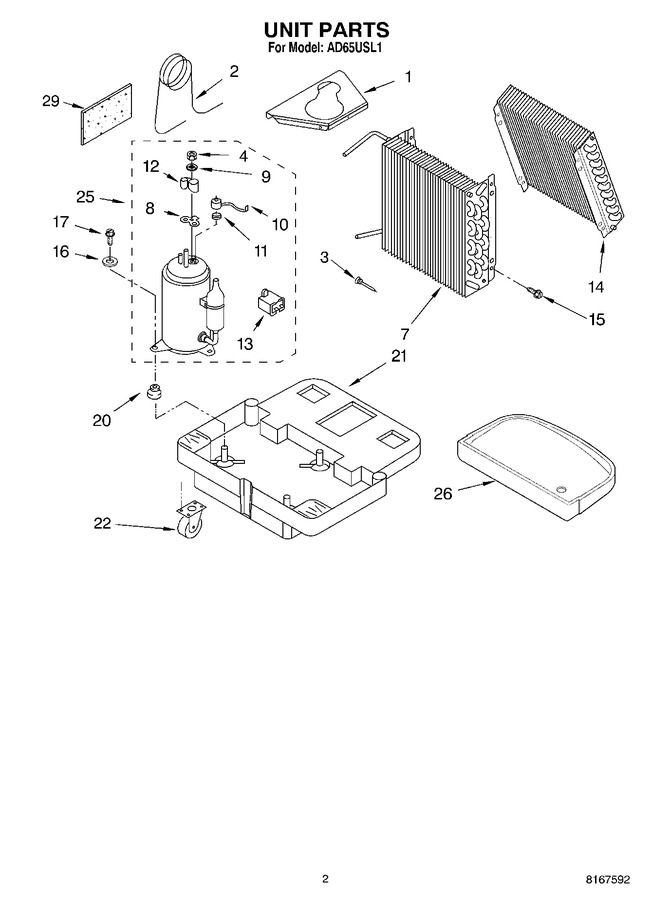

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1185282 | Brace, Compressor Support |
|
- | |||||
| 2 | 1168677 | Tube, Restrictor (length 30.00``) |
|
- | |||||
| 3 | WP1162526 | Strainer (Replaces: 1162526) |
|
$ 75.98 | |||||
| 4 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 7 | 1185432 | Condenser |
|
- | |||||
| 8 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 9 | 950037 | Gasket, Nut |
|
- | |||||
| 10 | 1162536 | Overload, Protector |
|
- | |||||
| 11 | 950032 | Spring, Overload |
|
- | |||||
| 12 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 13 | 1185333 | Capacitor |
|
- | |||||
| 14 | 1168655 | Evaporator |
|
- | |||||
| 15 | WP489069 | Screw, 8 X 1/2 (4) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 16 | 489108 | Washer |
|
- | |||||
| 17 | W10852658 | Screw (Replaces: 3400804) |
|
- | |||||
| 20 | 950212 | Grommet (4) |
|
- | |||||
| 21 | 1184730 | Base |
|
- | |||||
| 22 | 1164241 | Caster (4) |
|
- | |||||
| 25 | 1185010 | Compressor, (complete Assembly) |
|
- | |||||
| 26 | 1168761 | Pan, Drain |
|
- | |||||
| 29 | 1184625 | Seal, Anti Rub (restrictor Tube) |
|
- |
