Diagram for 01 - Air Flow And Control Parts
01 - Air Flow And Control Parts

Diagram for 02 - Unit Parts
02 - Unit Parts

Diagram for 03 - Cabinet Parts
03 - Cabinet Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1188575 Wiring Diagram Appelez-nous -
1 1188927 Use & Care Guide Appelez-nous -
3 1188929 Assembly, Control Panel Appelez-nous -
5 WP1188476 Capacitor, Fan   (Replaces: 1188476) Special Order $ 161.11

6 1188922 Motor, Fan Appelez-nous -
7 1188416 Wheel, Blower Appelez-nous -
8 1188469 Cord, Appliance Special Order $ 36.66

9 1188928 Overlay Appelez-nous -
10 WPW10339879 Tie, Cable   (Replaces: 857547) Special Order $ 7.47

11 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 7.92


    View Diagram in Separate Window     Print Icon   Print Part List

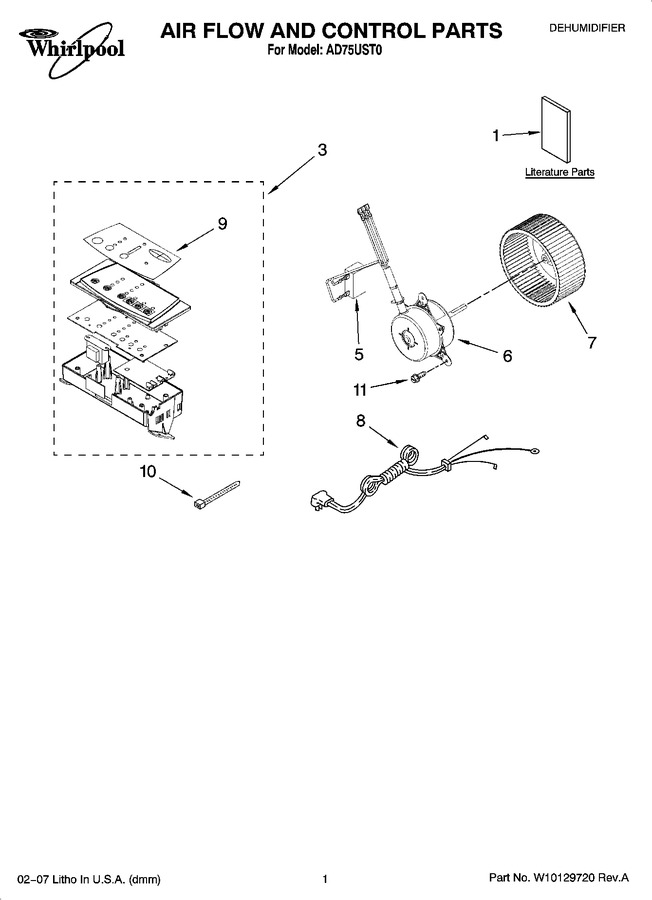

Diagram for AD75UST0
