View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

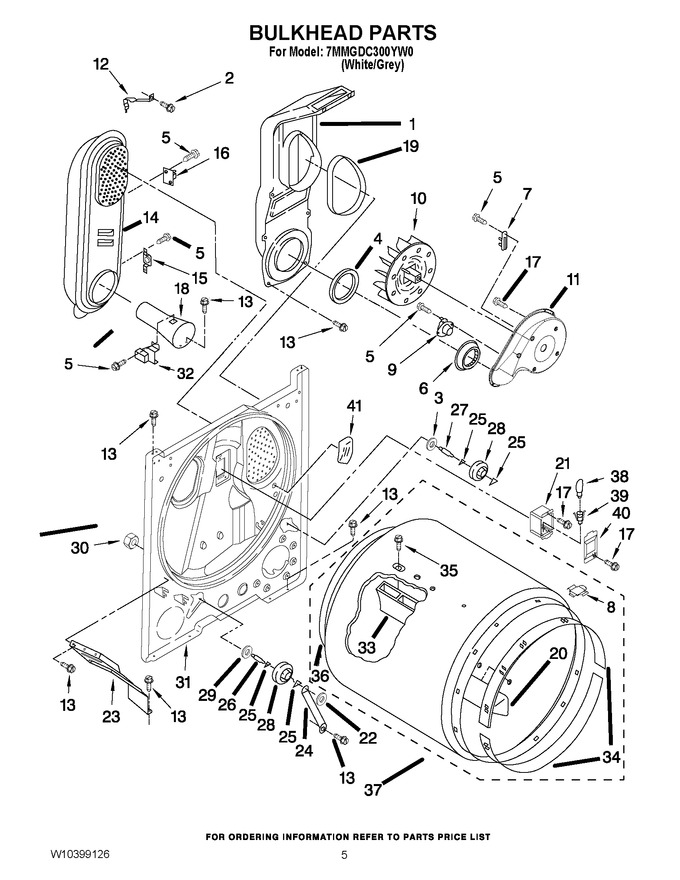

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 165.38 | |||||
| 2 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.43 | |||||
| 3 | WP3388703 | Washer, Support (Replaces: 3388703) |
|
$ 7.07 | |||||
| 4 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 17.23 | ||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 6 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 | |||||
| 7 | WP3392519 | Thermal - Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 8 | 8066086 | Drum Hole Plug |
|
$ 10.16 | |||||
| 9 | WP8318268 | Thermostat, Internal-bias (Replaces: 8318268) |
|
Immediately | $ 78.84 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 694089) |
|
Immediately | $ 33.89 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8577230) |
|
$ 168.17 | |||||
| 12 | 8066155 | Clip |
|
- | |||||
| 13 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 14 | 279980 | Box, Heater (Replaces: 8530285) |
|
$ 298.16 | |||||
| 15 | W11050897 | Thermostat, 205 F (96c) (Replaces: 3403140) |
|
Immediately | $ 13.77 | ||||
| 16 | W11050897 | Kit, Thermal Cut-off (includes Illus. 15) (Replaces: 280010) |
|
Immediately | $ 13.77 | ||||
| 17 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 18 | WP8066049 | Funnel, Burner (Replaces: 8066049) |
|
$ 140.85 | |||||
| 19 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.15 | ||||
| 20 | WP3403636 | Baffle, Drum (Replaces: 3403636) |
|
$ 131.03 | |||||
| 21 | 3977373 | Bracket-light |
|
$ 99.97 | |||||
| 22 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.42 | |||||
| 23 | W11398682 | Bracket, Bulkhead (Replaces: 3406022) |
|
$ 52.99 | |||||
| 24 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 19.79 | |||||
| 25 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 26 | WPW10359270 | Shaft, Drum Roller (l.h.) Threads (Replaces: W10359270) |
|
Immediately | $ 65.44 | ||||
| 27 | WPW10359269 | Shaft, Drum Roller (r.h.) Threads (Replaces: W10359269) |
|
Immediately | $ 51.09 | ||||
| 28 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 29 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.80 | |||||
| 30 | W11229607 | Nut, 3/8-16 (Replaces: W10298789) |
|
Immediately | $ 7.78 | ||||
| 31 | 3403494 | Bulkhead |
|
- | |||||
| 32 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 33 | WP692490 | Baffle, Drum (Replaces: 692490) |
|
$ 150.51 | |||||
| 34 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 66.11 | ||||
| 35 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 36 | W10612022 | Seal, Rear Drum (Replaces: W10352407) |
|
Immediately | $ 56.16 | ||||
| 37 | W10899578 | Drum, Assembly (Replaces: 695587) |
|
$ 337.98 | |||||
| 38 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 39 | W11700522 | Socket Assembly Light (Replaces: W10136369) |
|
$ 69.13 | |||||
| 40 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 41 | W10816105 | Pad, Sensor (Replaces: 3976479) |
|
$ 143.65 |
