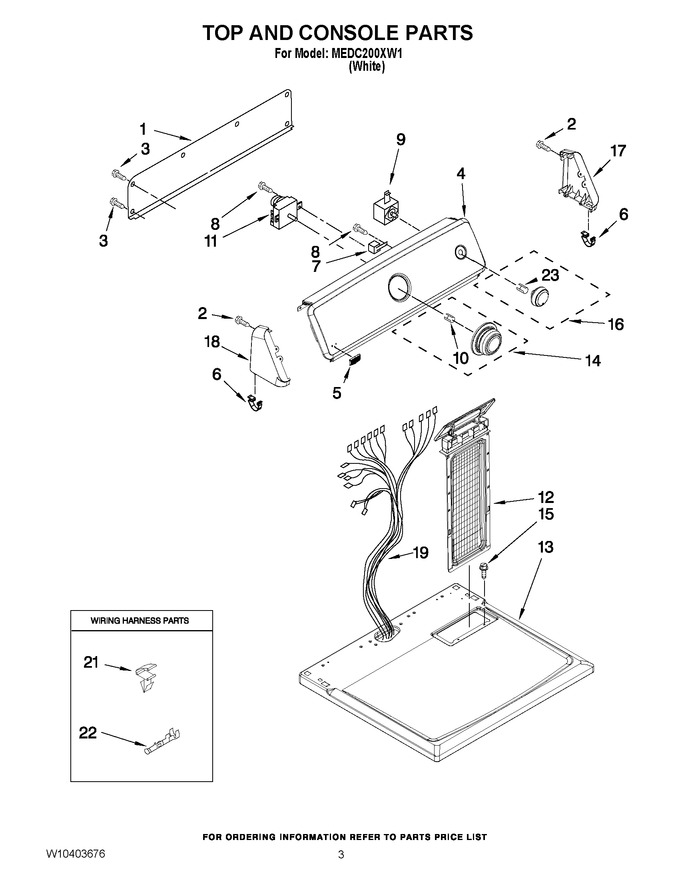

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console				$ 121.78
2	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 13.28
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
4	W10115474		Console Panel & Bracket Assembly (includes Items, 5 & 6)				$ 229.16
5	W10323734		Badge, Assembly				$ 57.56
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
9	WP3404233		Switch, Push-to-start   (Replaces: 3404233)			Immediately	$ 103.59
10	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
11	W10894766		Timer, 60 Hz.   (Replaces: W10185988)			Immediately	$ 345.53
12	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 49.17
13	WPW10225059		Top (includes Seal)   (Replaces: W10225059)				$ 225.62
14	WPW10317454		Knob Assembly, Timer   (Replaces: W10317454)				$ 57.12
15	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
16	WPW10317455		Knob, Control   (Replaces: W10317455)				$ 57.00
17	WPW10193821		Endcap (r.h.)   (Replaces: W10193821)				$ 67.25
18	WPW10193824		Endcap (l.h.)   (Replaces: W10193824)				$ 66.95
19	W10366759		Harness, Wiring		Appelez-nous	-
21	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.36
22	WP94614		Terminal   (Replaces: 94614)				$ 7.25
23	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
