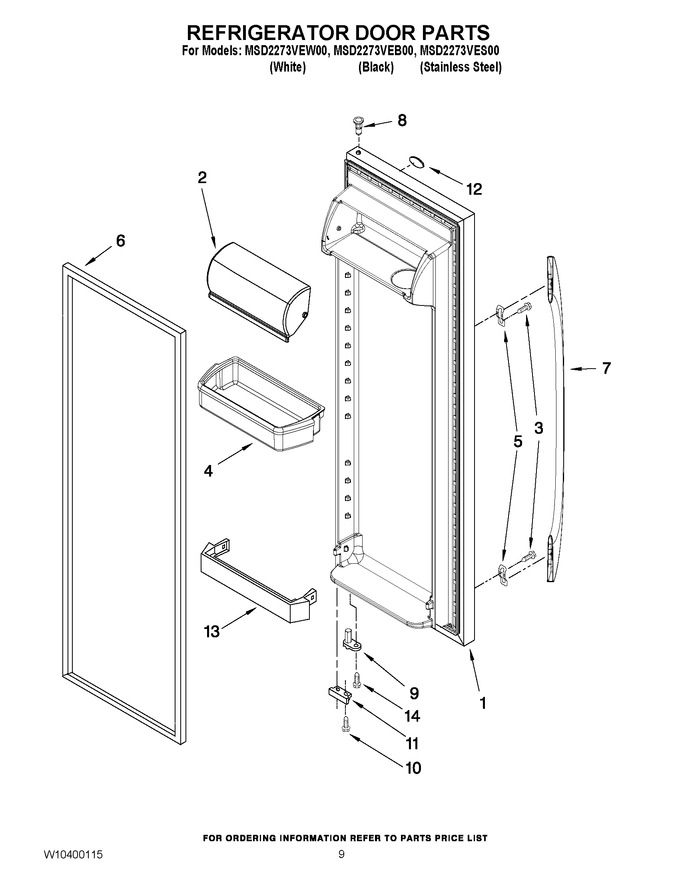

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10202774		Refrigerator Door (includes Item 6) (black)   (Replaces: W10202774)				$ 1,024.64
1	W10272005		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
1	W10202773		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 80.48
3	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
4	WPW10321304		Door Bin   (Replaces: W10321304)			Immediately	$ 40.46
5	WP2255411		Clip   (Replaces: 2255411)				$ 32.90
6	2159081		Door Gasket, Magnetic (black)   (Replaces: 2309653)				$ 302.02
6	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 299.87
7	WPW10170750		Handle (black)   (Replaces: W10170746)				$ 278.85
7	WPW10170739		Handle (stainless)   (Replaces: W10170739)				$ 327.53
7	WPW10170749		Handle (white)   (Replaces: W10170745)				$ 282.80
8	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.34
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
10	WP489483		Screw   (Replaces: 489420)				$ 10.27
11	2321218W		Bracket, Door Stop (white)		Appelez-nous	-
11	W10185571		Bracket, Door Stop (black)		Appelez-nous	-
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 63.45
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 68.69
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.43

    View Diagram in Separate Window       Print Part List
