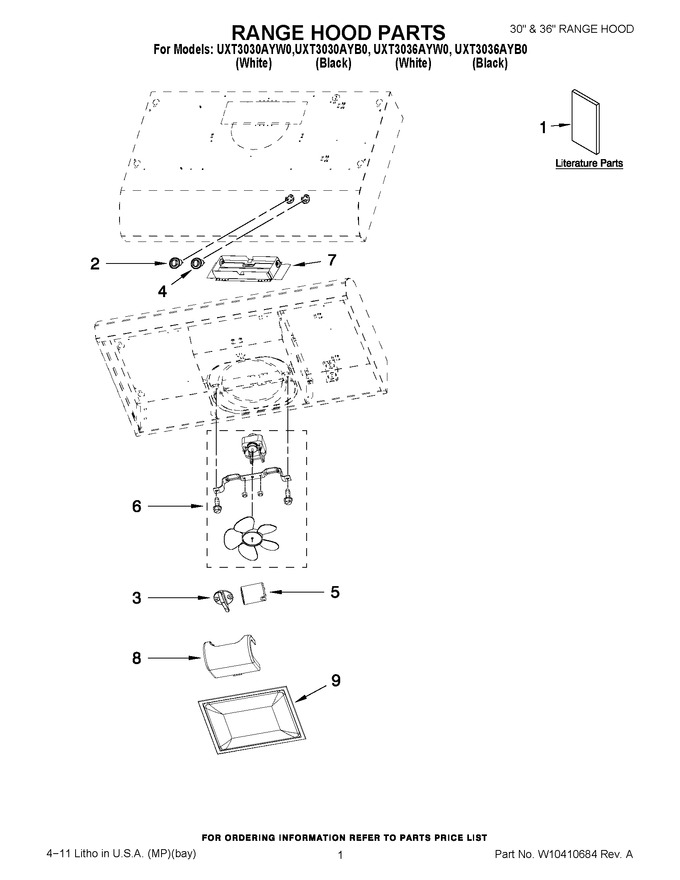

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10349965 | Guide, Use & Care |
|
- | |||||
| 2 | W10394520 | Switch, Light (black) |
|
$ 78.98 | |||||
| 2 | W10394523 | Switch, Light (white) |
|
- | |||||
| 3 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 4 | W11740801 | Switch, Fan (black) (Replaces: W10394521) |
|
$ 22.47 | |||||
| 4 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 5 | W10910124 | Socket, Bulb (Replaces: W10386341) |
|
$ 75.21 | |||||
| 6 | W11105126 | Motor/fan Assembly (Replaces: W10392502) |
|
$ 313.19 | |||||
| 7 | WPW10291572 | Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm) (Replaces: W10291572) |
|
$ 176.02 | |||||
| 8 | W10386342 | Cover, Lamp |
|
$ 31.42 | |||||
| 9 | W10395127 | Filter (Replaces: W10386350) |
|
Immediately | $ 28.89 | ||||
| NI | 31462A | Cleaner/polish (for Stainless Model Only) |
|
- | |||||
| NI | W10613691 | Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 | |||||
| NI | WPW10291572 | Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm) (Replaces: W10291572) |
|
$ 176.02 | |||||
| NI | W10398259 | Flapper Kit |
|
- |
