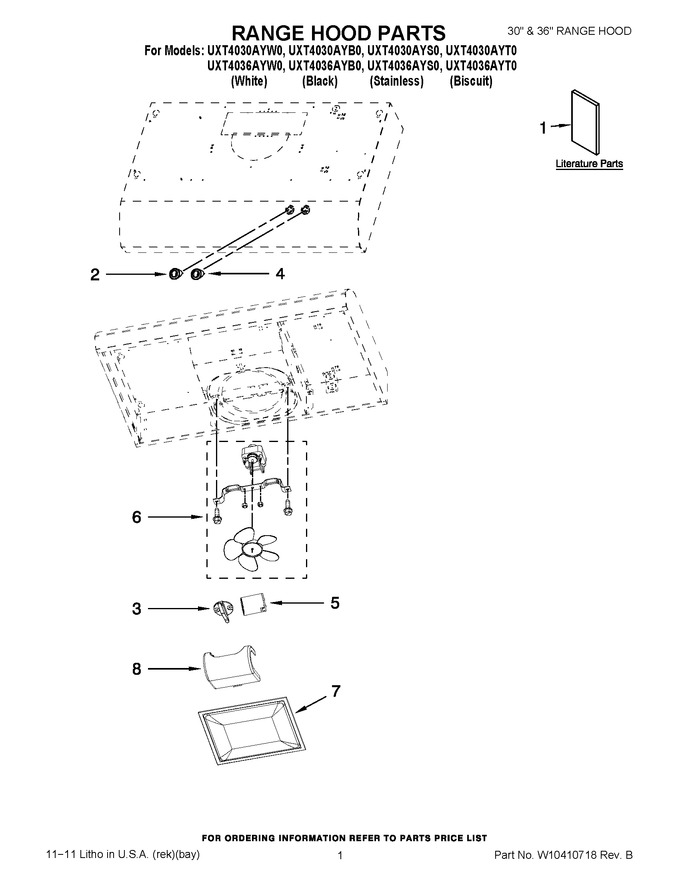

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10349965		Guide, Use & Care		Appelez-nous	-
2	W10394520		Switch, Light (black)				$ 78.98
2	W10394523		Switch, Light (white)		Appelez-nous	-
2	W10372593		Switch, Light (biscuit)		Appelez-nous	-
3	W10386347		Latch, Filter				$ 13.28
4	W10372597		Switch, Fan (biscuit)		Appelez-nous	-
4	W11740801		Switch, Fan (black)   (Replaces: W10394521)				$ 22.47
4	W10394557		Switch, Fan (white)				$ 74.80
5	W10910124		Socket, Bulb   (Replaces: W10386341)				$ 75.21
6	W10910693		Motor/fan Assembly   (Replaces: W10372598)				$ 173.75
7	W10394517		Filter, Grease				$ 29.16
8	W10386342		Cover, Lamp				$ 31.42
NI	31462A		Cleaner/polish (for Stainless Model Only)		Appelez-nous	-
NI	W10613691		Power Cord Kit   (Replaces: W10355452)				$ 52.92
NI	W10355450		Charcoal Filter Kit				$ 44.64
