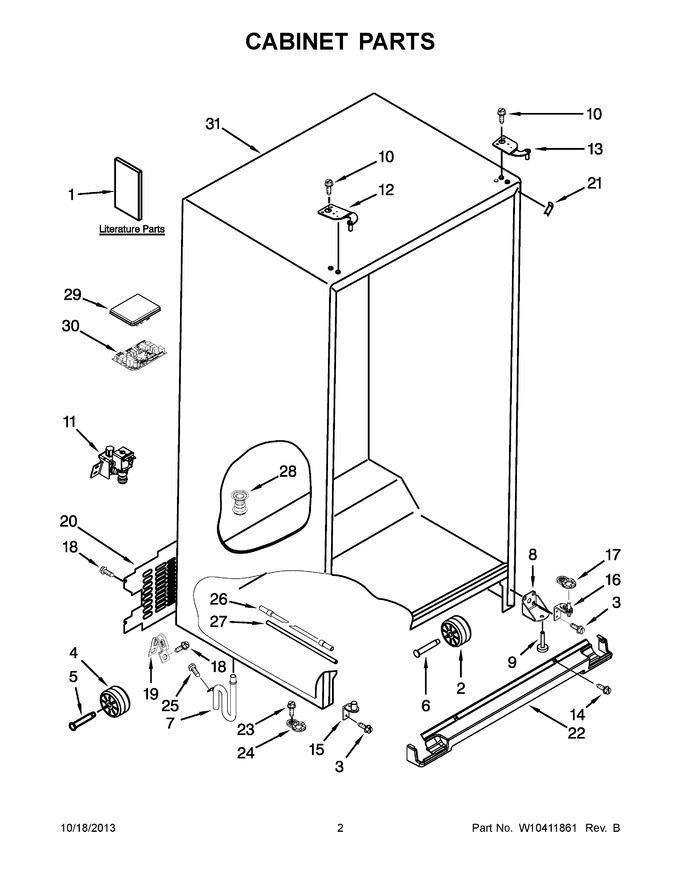

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10281961 | Use And Care Guide |
|
- | |||||
| 1 | W10281968 | Energy Guide |
|
- | |||||
| 2 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 3 | WPW10297485 | Screw (Replaces: W10297485) |
|
$ 7.56 | |||||
| 4 | 12477102 | Roller |
|
Immediately | $ 6.64 | ||||
| 5 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.11 | ||||
| 6 | WPW10285005 | Axle, Roller (Replaces: W10285005) |
|
$ 15.09 | |||||
| 7 | W11293072 | Tube, Extension (Replaces: W10240361) |
|
$ 31.14 | |||||
| 8 | W11266052 | Bracket, Foot (Replaces: W10257186) |
|
$ 59.68 | |||||
| 9 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 10 | WPW10308750 | Screw (white) (Replaces: W10308750) |
|
$ 65.96 | |||||
| 11 | WPW10238100 | Valve, Inlet (Replaces: W10238100) |
|
Immediately | $ 189.50 | ||||
| 12 | W11590581 | Hinge, Top, Freezer (grey) (Replaces: W10249922) |
|
Immediately | $ 22.44 | ||||
| 13 | W11409290 | Hinge, Top,refrigerator (grey) (Replaces: W10249925) |
|
Immediately | $ 63.43 | ||||
| 14 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 15 | W11293374 | Bottom Hinge (freezer) (grey) (Replaces: W10249943) |
|
$ 65.99 | |||||
| 16 | W10500004 | Bottom Hinge (refrigerator) (grey) (Replaces: W10257209) |
|
Immediately | $ 125.24 | ||||
| 17 | W10500004 | Door Closer (refrigerator) (grey) (Replaces: W10257197) |
|
Immediately | $ 125.24 | ||||
| 18 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 19 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 20 | W10257238 | Cover, Unit (Replaces: W10333887) |
|
$ 92.74 | |||||
| 21 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 22 | WPW10713153 | Grille (grey) (Replaces: W10257234) |
|
Immediately | $ 121.97 | ||||
| 23 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.27 | |||||
| 24 | W10876191 | Door Closer, Freezer (grey) (Replaces: W10257200) |
|
$ 16.18 | |||||
| 25 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 26 | WPW10279882 | Tube, Filter Inlet (Replaces: W10277956) |
|
$ 102.81 | |||||
| 27 | WPW10279884 | Tube, Filter Outlet (Replaces: W10277957) |
|
$ 124.28 | |||||
| 28 | W10247979 | Fitting, Drain |
|
$ 61.04 | |||||
| 29 | W11226688 | Lid, Hv Box (Replaces: 12957702) |
|
$ 76.64 | |||||
| 30 | W11088499 | Control, Electronic (Replaces: W10446514) |
|
Immediately | $ 459.14 | ||||
| 31 | N/P | Cabinet (not A Serviceable Part) |
|
- |
