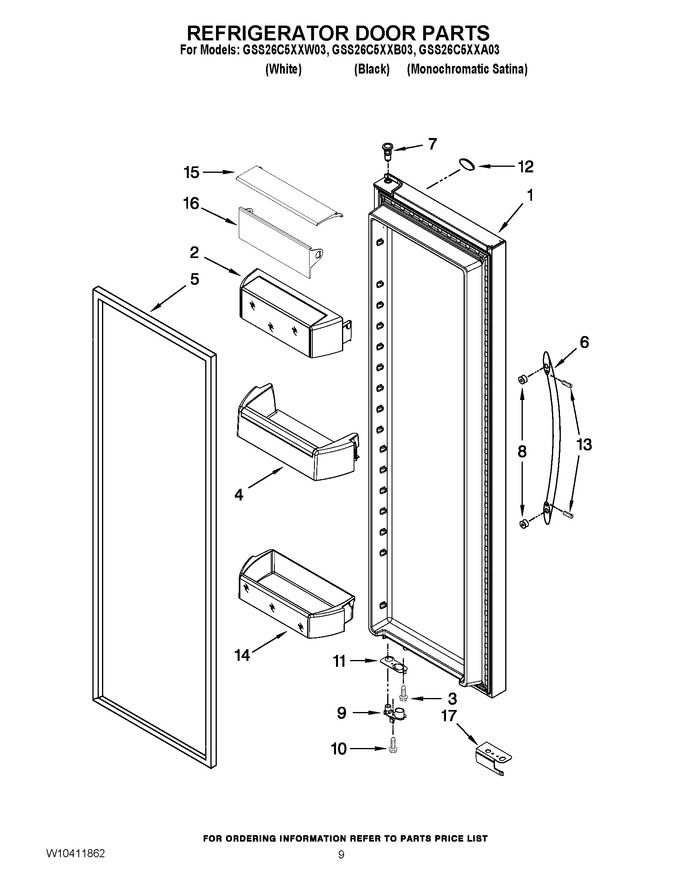

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10334483		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10281909		Refrigerator Door (includes Item 5) (momo Satina)		Appelez-nous	-
1	LW10261114		Refrigerator Door (includes Item 5) (white)   (Replaces: W10261114)				$ 544.26
2	W10336573		Door Compartment Assembly		Appelez-nous	-
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W10335221		Door Bin, Shallow				$ 35.30
5	W10355582		Door Gasket, Magnetic (apollo Grey)   (Replaces: W10249916)				$ 307.13
5	WPW10247884		Door Gasket, Magnetic (mist Beige)   (Replaces: W10247884)				$ 290.67
5	WPW10249912		Door Gasket, Magnetic (black)   (Replaces: W10249912)				$ 296.26
6	WPW10670421		Handle (stainless/satina)   (Replaces: W10274730)				$ 228.74
6	WPW10268057		Handle (black)   (Replaces: W10268057)				$ 156.70
6	WPW10268056		Handle (white)   (Replaces: W10268056)				$ 156.70
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.69
9	WPW10248011		Door Closer, Upper Cam (white)   (Replaces: W10248011)				$ 11.64
9	WPW10257201		Door Closer, Upper Cam (black)   (Replaces: W10257201)				$ 11.64
9	WPW10257203		Door Closer, Upper Cam (apollo Grey)   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop   (Replaces: W10367462)				$ 72.22
12	2220214		Nameplate (gold)				$ 32.43
13	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 16.59
13	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.71
14	WPW10335220		Door Bin, Gallon   (Replaces: W10335219)				$ 84.23
15	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 60.90
16	W10336570		Window, Door Compartment				$ 30.07
17	W10789144		Cover, Door Stop (white)   (Replaces: W10248013)				$ 17.44
17	W10257216		Cover, Door Stop (black)		Appelez-nous	-
17	W11661847		Cover, Door Stop (midnight Grey)   (Replaces: W10257218)			Immediately	$ 28.54

    View Diagram in Separate Window       Print Part List
