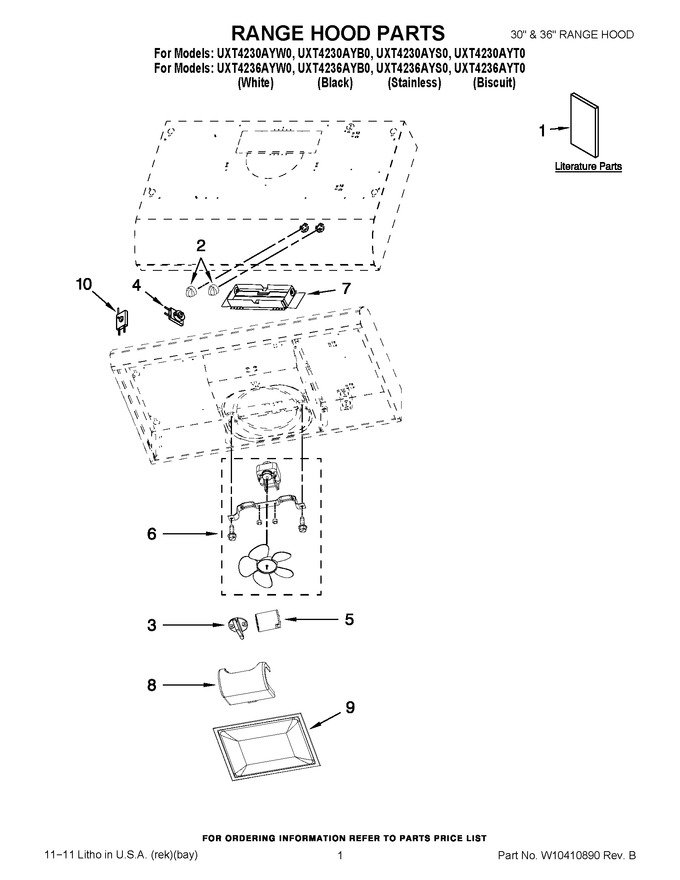

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10349965		Guide, Use & Care		Appelez-nous	-
2	W10395036		Knob (black)				$ 15.10
2	W10395036		Knob (white)   (Replaces: W10395129)				$ 15.10
2	W10395010		Knob (biscuit)				$ 19.23
3	W10386347		Latch, Filter				$ 13.28
4	W11206737		Switch, Lights   (Replaces: W10395074)			Immediately	$ 14.60
5	W10910124		Socket, Bulb   (Replaces: W10386341)				$ 75.21
6	WPW10395033		Motor/fan Assembly   (Replaces: W10395033)				$ 309.81
7	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 176.02
8	W10386342		Cover, Lamp				$ 31.42
9	W10395127		Filter, Grease			Immediately	$ 28.89
10	WPW10395126		Switch, Fan   (Replaces: W10395126)				$ 134.50
NI	W10398259		Flapper Kit		Appelez-nous	-
NI	W10355450		Charcoal Filter Kit				$ 44.64
NI	W10355451		Round Damper 7`` (17.8 Cm)				$ 42.50
NI	W10388168		Mounting Plate Round Vent 7`` (17.8 Cm)				$ 37.92
NI	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 176.02
NI	W10613691		Power Cord Kit   (Replaces: W10355452)				$ 52.92
NI	31462A		Cleaner/polish (for Stainless Model Only)		Appelez-nous	-
