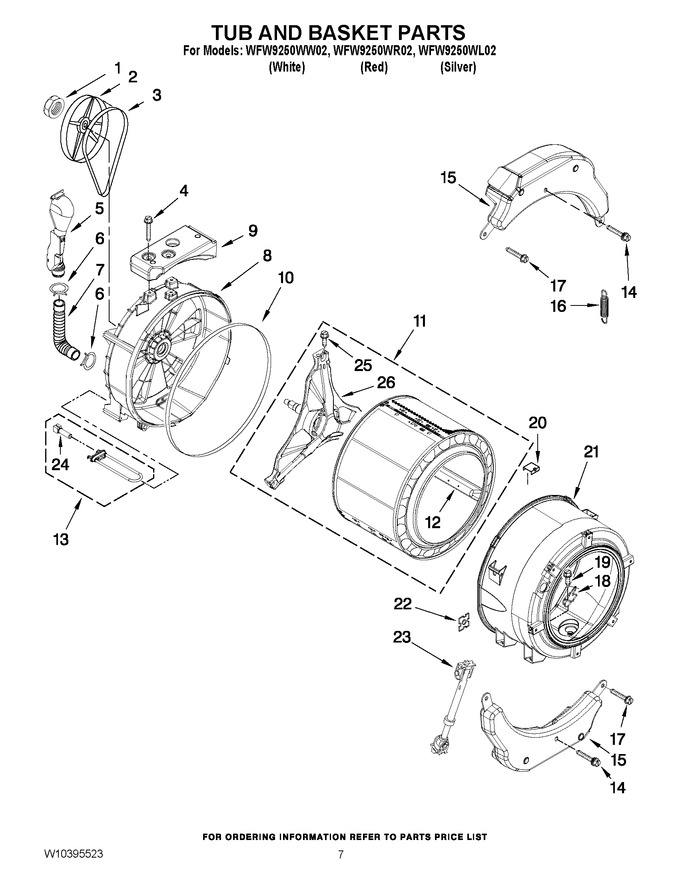

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 74.76 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088C) |
|
$ 185.53 | |||||
| 3 | WP8540101 | Belt, Drive (Replaces: 8540101) |
|
Immediately | $ 42.54 | ||||
| 4 | W11028021 | Screw, Rear Counterweight (Replaces: W10246531) |
|
$ 8.34 | |||||
| 5 | W10142720 | Pipe, Ventilation |
|
$ 99.39 | |||||
| 6 | 8540010 | Clamp, Vent Hose |
|
$ 10.57 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: 8540019) |
|
$ 28.52 | |||||
| 8 | W11239041 | Tub, Rear (includes Items 10 & 22) (Replaces: W10200752) |
|
$ 721.49 | |||||
| 9 | WPW10200747 | Counterweight, Rear (Replaces: W10200747) |
|
$ 152.26 | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 93.68 | ||||
| 11 | WPW10202459 | Basket, Complete (Replaces: W10202459) |
|
$ 535.90 | |||||
| 12 | WP8540360 | Baffle, Tub (Replaces: 8540360) |
|
Immediately | $ 75.99 | ||||
| 13 | WPW10426377 | Element, Heating (Replaces: W10253993) |
|
$ 287.10 | |||||
| 14 | WPW10259288 | Bolt Assembly, Counterweight Center Hole (Replaces: W10259288) |
|
$ 12.58 | |||||
| 15 | WPW10223198 | Counterweight, Front (Replaces: W10223198) |
|
Immediately | $ 169.07 | ||||
| 16 | 280159 | Spring, Suspension (set Of 2) (Replaces: W10010360) |
|
$ 100.89 | |||||
| 17 | W11685857 | Bolt, Front Counterweight (Replaces: W10094780) |
|
$ 13.33 | |||||
| 18 | 8540322 | Bracket, Heating Element |
|
- | |||||
| 19 | W11230114 | Screw (Replaces: 8540880) |
|
$ 12.55 | |||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.17 | |||||
| 21 | W10305749 | Tub, Front (includes Items 10, 18, 19 & 22) (Replaces: W10289874) |
|
$ 223.59 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 6.57 | ||||
| 23 | W10822553 | Shock Absorber (Replaces: W10015830) |
|
Immediately | $ 75.98 | ||||
| 24 | WPW10467289 | Negative Thermistor Control (Replaces: W10176659) |
|
Immediately | $ 43.02 | ||||
| 25 | WP8540382 | Screw (Replaces: 8540382) |
|
$ 6.57 | |||||
| 26 | W10202464 | Crosspiece Asm |
|
- |
