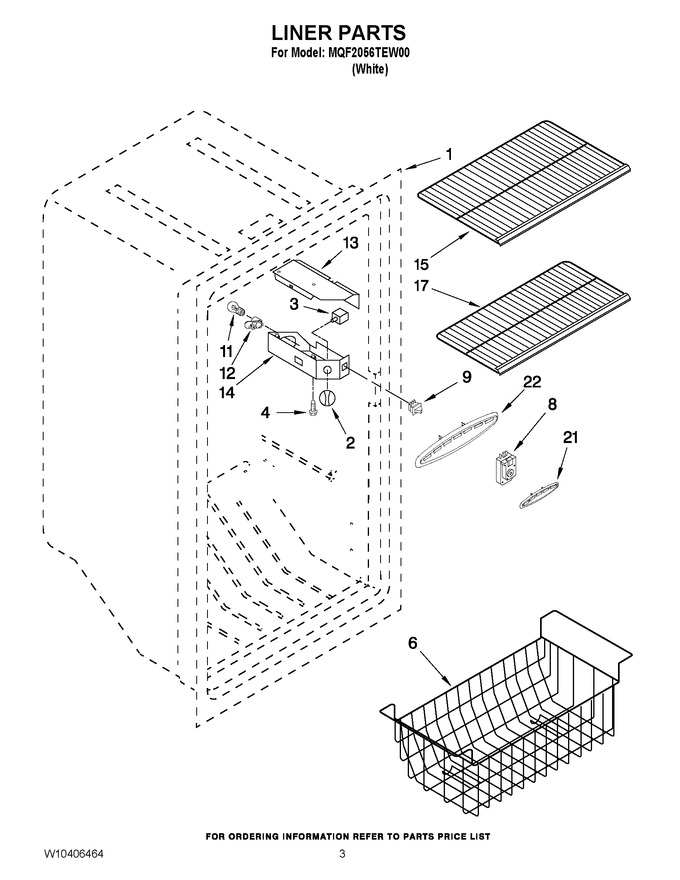

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob, Control (Replaces: 8210348) |
|
$ 27.09 | |||||
| 3 | WP1-81801-001 | Thermostat (Replaces: 8210253) |
|
Immediately | $ 116.88 | ||||
| 4 | W10709795 | Screw (Replaces: 4390511) |
|
$ 12.41 | |||||
| 6 | 4390632 | Basket, Wire |
|
- | |||||
| 8 | WP3-81329 | Defrost Timer (Replaces: 4357124) |
|
Immediately | $ 179.23 | ||||
| 9 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 35.18 | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 10.17 | ||||
| 12 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 13 | 8210351 | Shield, Light |
|
$ 42.03 | |||||
| 14 | 8210406 | Box, Control |
|
- | |||||
| 15 | WP4-82634-001 | Shelf, Upper Wire (Replaces: W10164533) |
|
$ 140.00 | |||||
| 17 | WP4-82977-001 | Shelf, Lower Wire (Replaces: W10258752) |
|
$ 137.48 | |||||
| 21 | 4-82573-002 | Diffuser, Air Sht (Replaces: W10258754) |
|
- | |||||
| 22 | W10258753 | Diffuser, Air Upr |
|
- |
