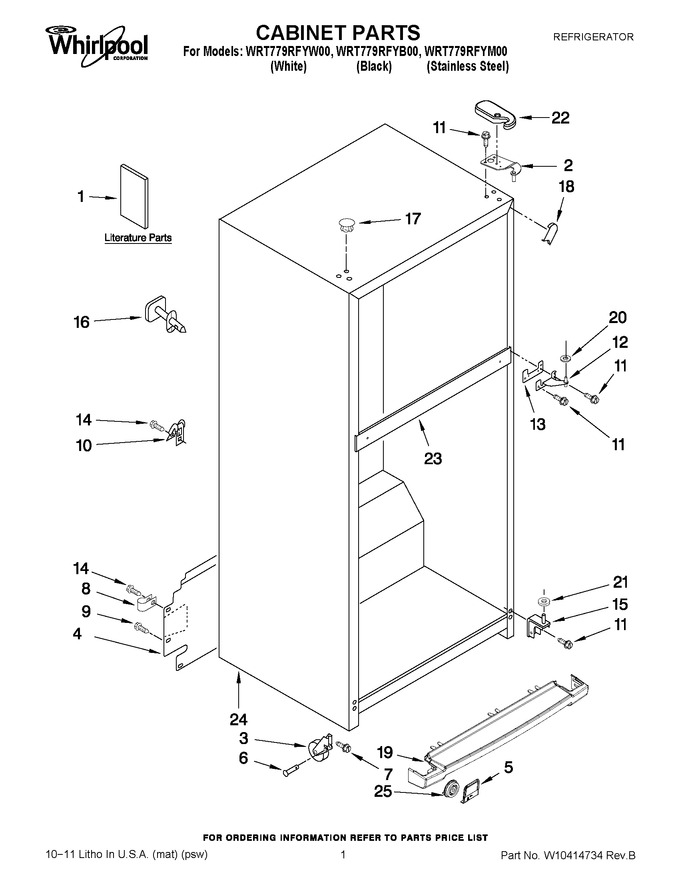

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404596 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10343810 | Use & Care Guide |
|
- | |||||
| 1 | W10362207 | Energy Label |
|
- | |||||
| 1 | 2225623 | Modular Icemaker Service Sheet |
|
- | |||||
| 2 | WPW10300065 | Hinge (top) (Replaces: W10300069) |
|
$ 12.55 | |||||
| 3 | W10849386 | Roller Assembly (Replaces: W10327136) |
|
$ 103.28 | |||||
| 4 | W10636716 | Cover, Unit (Replaces: W10384413) |
|
$ 94.74 | |||||
| 5 | W10353930 | Endcap, Grille (black) |
|
$ 76.81 | |||||
| 5 | WPW10353932 | Endcap, Grille (grey) (Replaces: W10353932) |
|
$ 76.95 | |||||
| 5 | WPW10339257 | Endcap, Grille (white) (Replaces: W10339257) |
|
$ 76.88 | |||||
| 6 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 7 | 3400524 | Screw (Replaces: W10142287) |
|
$ 11.95 | |||||
| 8 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 10.73 | |||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 10 | 549193 | Clamp, Cord |
|
$ 12.65 | |||||
| 11 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 12 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 13 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.06 | |||||
| 14 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 15 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 16 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 17 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 17.11 | |||||
| 17 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 17 | WPW10520307 | Hole Plug (6) (grey) (Replaces: 2254506) |
|
Immediately | $ 6.80 | ||||
| 18 | WPW10283959 | Corner Filler (2) (white) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 18 | W10851579 | Corner Filler (2) (grey) (Replaces: W10283961) |
|
Immediately | $ 6.80 | ||||
| 18 | W11252732 | Corner Filler (2) (black) (Replaces: W10283960) |
|
$ 11.76 | |||||
| 19 | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 146.81 | ||||
| 19 | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 146.52 | |||||
| 19 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 145.34 | |||||
| 20 | WP489467 | Washer, Plain (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 21 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 22 | W10331560A | Cover, Hinge (white Rs) (Replaces: W10331560) |
|
$ 12.10 | |||||
| 22 | W10353950A | Cover, Hinge (grey Ls) (Replaces: W10353950) |
|
$ 21.94 | |||||
| 22 | W10353947A | Cover, Hinge (grey Rs) (Replaces: W10353947) |
|
$ 12.85 | |||||
| 22 | W10353948A | Cover, Hinge (black Ls) (Replaces: W10353948) |
|
$ 13.62 | |||||
| 22 | W10353945A | Cover, Hinge (black Rs) (Replaces: W10353945) |
|
$ 13.62 | |||||
| 22 | W10331654 | Cover, Hinge (white Ls) |
|
- | |||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 24 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 25 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| NI | 677969 | Do-it-yourself Manual Ref./fzr. |
|
$ 30.30 |
