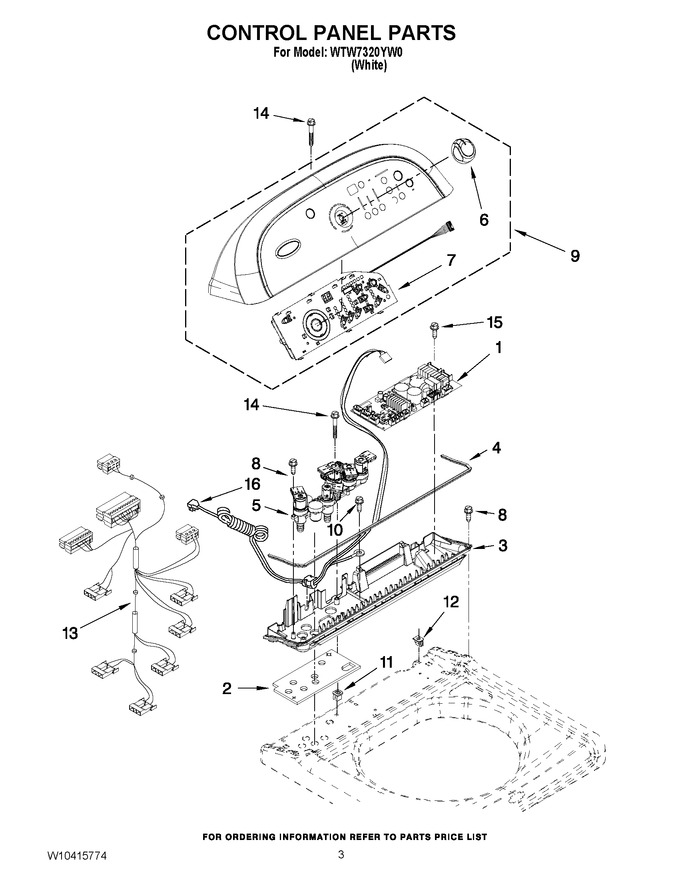

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10372181 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 2 | W10130502 | Gasket, Valve Tray |
|
$ 19.43 | |||||
| 3 | 8578550 | Tray Assembly, Console (includes Items 2 & 4) |
|
$ 45.19 | |||||
| 4 | 8546616 | Gasket, Console/tray |
|
$ 60.11 | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10326913) |
|
Immediately | $ 128.36 | ||||
| 6 | WPW10211335 | Knob, Control (Replaces: W10211335) |
|
$ 53.78 | |||||
| 7 | WPW10297396 | User Interface (Replaces: W10297396) |
|
$ 321.76 | |||||
| 8 | WPW10052600 | Screw, 8-18 X 3/4 (Replaces: W10052600) |
|
$ 6.57 | |||||
| 9 | W10298642 | Console |
|
$ 361.22 | |||||
| 10 | WP3351614 | Screw, Power Cord Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 11 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 12 | W10022060 | Nut, Push-in |
|
- | |||||
| 13 | WPW10328039 | Harness, 6-coil Valve, W/o Htr (Replaces: W10328039) |
|
$ 158.35 | |||||
| 14 | 8565324 | Screw, 10-16 X 1.75 |
|
$ 12.65 | |||||
| 15 | WP8281136 | Screw, 8-18 X 3/4 (Replaces: 8281136) |
|
$ 6.57 | |||||
| 16 | 3407203 | Cord Assembly, Power |
|
$ 59.22 |
