View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

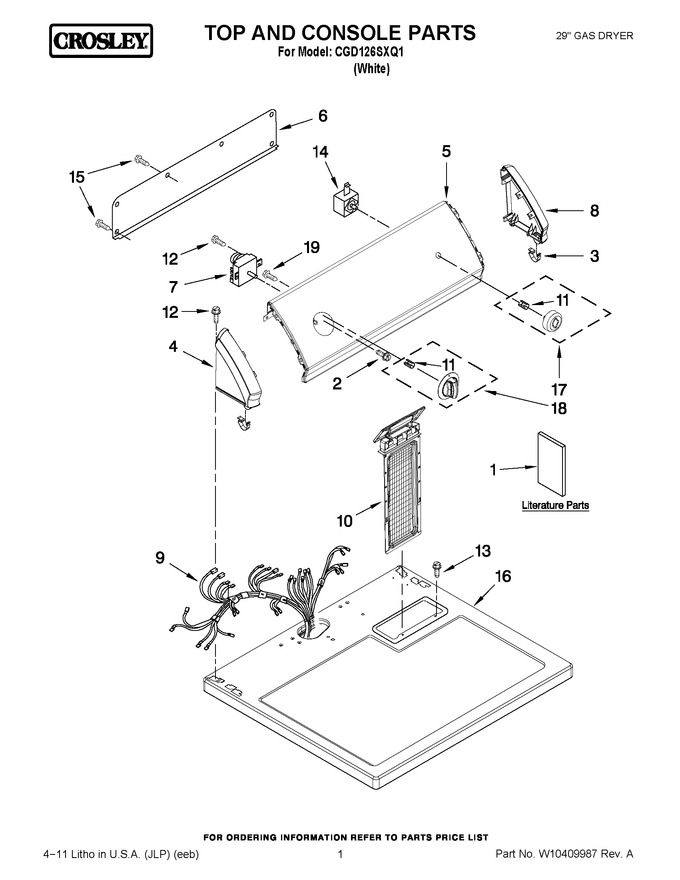

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10336852 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096984 | Installation (instructions) |
|
- | |||||
| 1 | W10185990 | Wiring Diagram |
|
- | |||||
| 1 | W10096992 | Use & Care Guide |
|
- | |||||
| 2 | W10850756 | Screw, 10-32 X 1/2 (Replaces: 8533974) |
|
$ 7.38 | |||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | WP8559502 | Cap, End (l.h.) (Replaces: 8559502) |
|
$ 65.69 | |||||
| 5 | W10115483 | Panel Console & Bracket Assembly |
|
- | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 7 | W11043385 | Timer (60 Hz.) (Replaces: W10185987) |
|
$ 331.52 | |||||
| 8 | WP8559501 | Cap, End (r.h.) (Replaces: 8559501) |
|
$ 65.49 | |||||
| 9 | W10366763 | Harness, Wiring |
|
- | |||||
| 10 | W10874409 | Screen, Lint (Replaces: 8558467) |
|
Immediately | $ 60.31 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 23.99 | ||||
| 15 | WP693995 | Screw, 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | W10317459 | Knob, Push-to-start |
|
- | |||||
| 18 | W10317457 | Knob, Timer Assembly |
|
- | |||||
| 19 | W10915367 | Screw, 8-18 X 5/16 (Replaces: 3400808) |
|
- |
