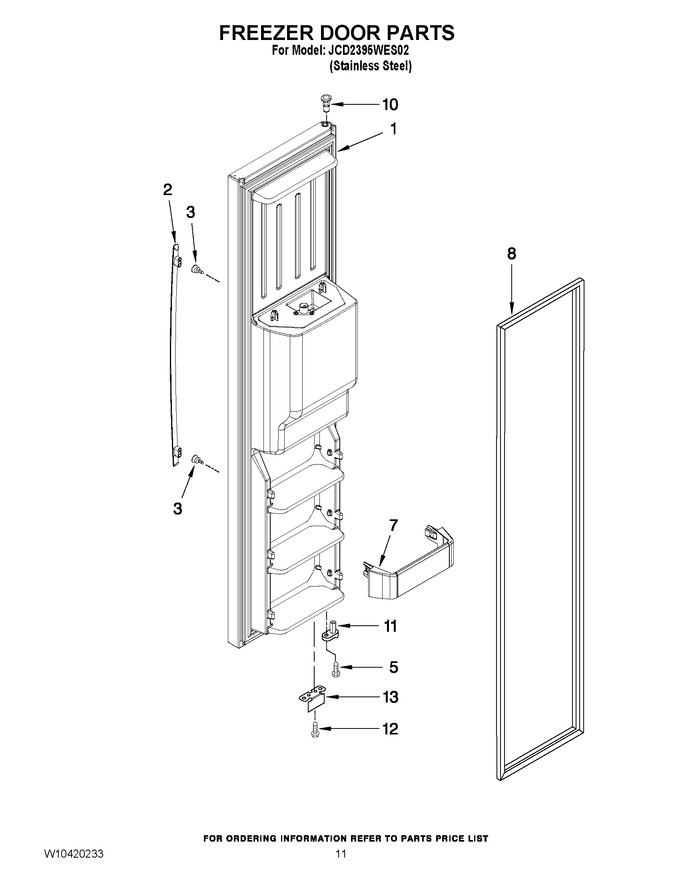

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318313		Freezer Door (includes No.8 And Dispenser Front Parts)		Appelez-nous	-
2	WPW10183428		Handle   (Replaces: W10183428)			Immediately	$ 303.40
3	WPW10170540		Stud, Handle   (Replaces: 2326259)			Immediately	$ 8.69
5	WP3400012		Screw   (Replaces: W10142285)				$ 7.43
7	2223559		Shelf Bin				$ 28.77
8	2326343		Door Gasket, Magnetic		Appelez-nous	-
10	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.34
11	2307050		Door Closer, (upper Cam)				$ 39.47
12	WPW10142233		Screw   (Replaces: W10142233)				$ 8.04
13	2306940		Bracket, Door Stop				$ 91.74
NI	2310224		Wire Harness, Freezer Door		Appelez-nous	-
NI	W10291319		Tube, Door		Appelez-nous	-
