View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts

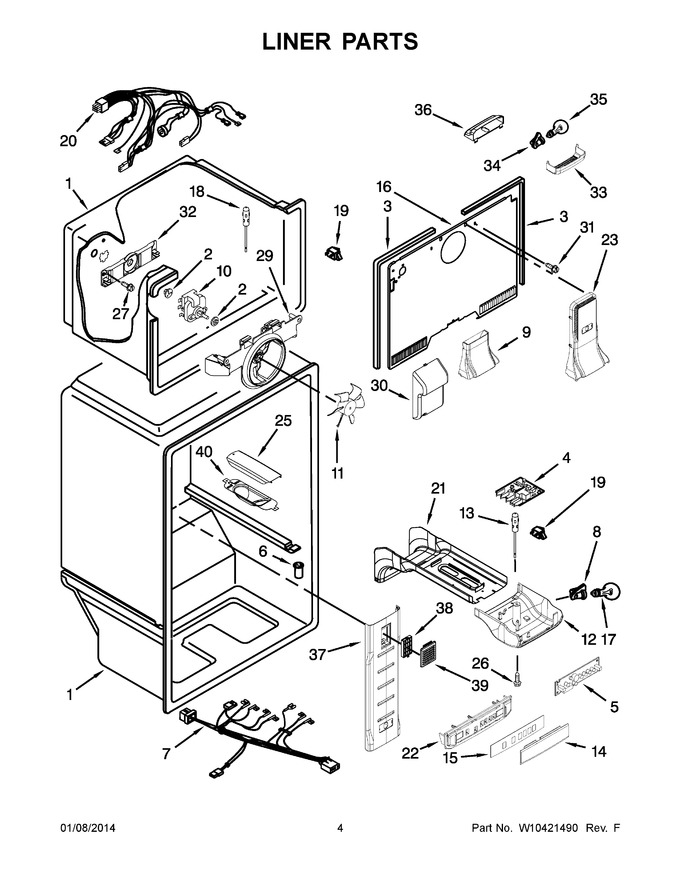

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | WPW10392195 | Control, Electronic (Replaces: W10392195) |
|
$ 329.09 | |||||
| 5 | WPW10341559 | Control, User Interface (Replaces: W10341559) |
|
$ 251.88 | |||||
| 6 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 89.24 | |||||
| 7 | W10557785 | Assembly, Control Box Wire |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 9 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10316942 | Control Box |
|
$ 90.88 | |||||
| 13 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 14 | W10339195 | Lens, Fascia |
|
$ 21.53 | |||||
| 15 | W10356943 | Overlay |
|
$ 100.05 | |||||
| 16 | W10385132 | Cover, Evaporator |
|
- | |||||
| 17 | W10887190 | Bulb, Light (Replaces: W10311528) |
|
Immediately | $ 17.31 | ||||
| 18 | WPW10383615 | Thermistor, Freezer Evaporator (Replaces: W10383615) |
|
Immediately | $ 46.12 | ||||
| 19 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 20 | W10341565 | Assembly, Evaporator Fan Wire |
|
- | |||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10383443 | Fascia, Control |
|
$ 71.60 | |||||
| 23 | W10305174 | Tower, Air |
|
$ 43.06 | |||||
| 25 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 106.16 | |||||
| 26 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 27 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 30 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 6.80 | |||||
| 31 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 32 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 33 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 34 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 35 | W11518235 | Bulb, Light (Replaces: W10473925) |
|
Immediately | $ 26.36 | ||||
| 36 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 37 | WPW10356895 | Tower, Multiflow Air (Replaces: W10356895) |
|
$ 145.34 | |||||
| 38 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 39 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 33.80 | |||||
| 40 | WPW10314195 | Shield, Heat (Replaces: W10314195) |
|
$ 91.21 |
