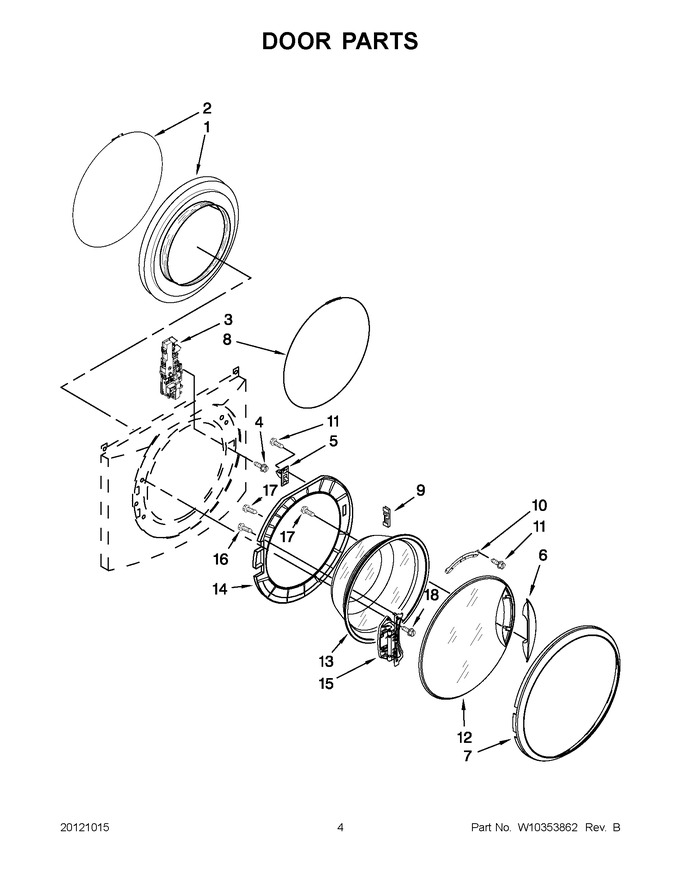

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222077 | Bellow (Replaces: W10311051) |
|
Immediately | $ 269.09 | ||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 23.08 | ||||
| 3 | WPW10196671 | Lock, Door (Replaces: W10196671) |
|
$ 144.55 | |||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 7.67 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 11.15 | ||||
| 6 | W10082060 | Handle, Door |
|
$ 210.86 | |||||
| 7 | WPW10079810 | Trim Ring, Outer Door (Replaces: W10079810) |
|
$ 299.51 | |||||
| 8 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10217563) |
|
Immediately | $ 20.07 | ||||
| 9 | WP8540115 | Clamp, Support (Replaces: 8540115) |
|
$ 6.57 | |||||
| 10 | W11665946 | Clamp, Glass (Replaces: 8540114) |
|
$ 19.71 | |||||
| 11 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 12 | 8540792 | Inner Door Assembly |
|
- | |||||
| 13 | WPW10388315 | Glass, Door (Replaces: W10388315) |
|
$ 310.75 | |||||
| 14 | WPW10376617 | Frame, Door Back Support (Replaces: W10376617) |
|
$ 67.28 | |||||
| 15 | W10118967 | Hinge, Door |
|
$ 144.63 | |||||
| 16 | WP8181660 | Screw (Replaces: 8540284) |
|
$ 6.57 | |||||
| 17 | WP8540282 | Screw (Replaces: 8540282) |
|
Immediately | $ 10.93 | ||||
| 18 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 10.34 |
