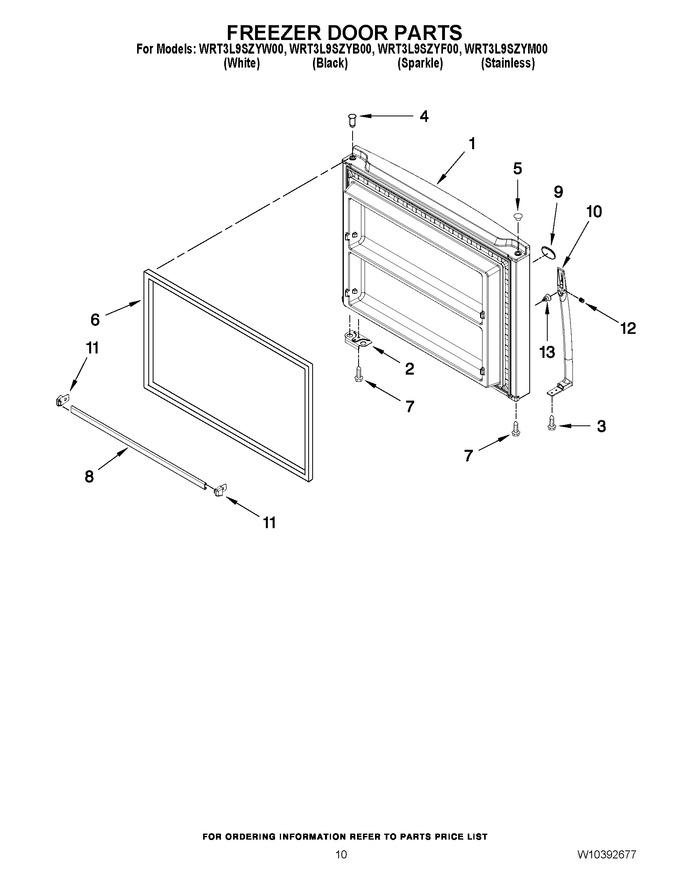

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10406256		Freezer Door (includes Illus. 4 & 6) (black)		Appelez-nous	-
1	W10406258		Freezer Door (includes Illus. 4 & 6) (sparkle, Stainless)		Appelez-nous	-
1	W10406254		Freezer Door (includes Illus. 4 & 6) (white)		Appelez-nous	-
2	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
3	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
4	W11189115		Thimble   (Replaces: W10334042)				$ 11.44
5	WP2254517		Hole Plug, Hinge Sleeve (grey)   (Replaces: 2254517)			Immediately	$ 21.91
5	WP2212648		Hole Plug, Hinge Sleeve (white)   (Replaces: 2212648)			Immediately	$ 7.37
5	WP2212651		Hole Plug, Hinge Sleeve (black)   (Replaces: 2212651)				$ 21.79
6	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 292.22
6	W11624958		Door Gasket, Magnetic (grey)   (Replaces: W10279559)				$ 288.83
6	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 148.12
7	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
8	W10469910		Trim, Door Shelf (2)   (Replaces: W10308873)				$ 148.25
9	WPW10393264		Nameplate (black)   (Replaces: W10393264)				$ 60.97
9	W11178521		Nameplate (white)   (Replaces: W10387117)			Immediately	$ 56.82
10	WPW10498430		Handle (black)   (Replaces: W10354109)				$ 109.16
10	W11765172		Handle (sparkle)   (Replaces: W10371981)			Immediately	$ 112.65
10	WPW10498429		Handle (white)   (Replaces: W10366325)				$ 157.58
11	W10338485		Endcap Ls				$ 10.41
11	W10308871		Endcap Rs				$ 10.44
12	690046		Screw		Appelez-nous	-
13	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69

    View Diagram in Separate Window       Print Part List
