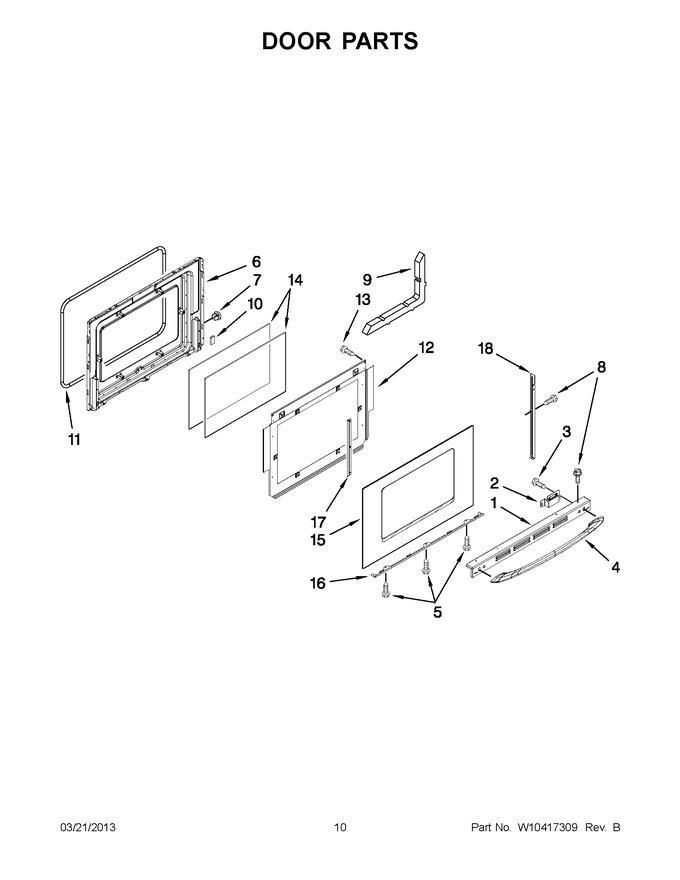

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-71		Trim, Door Top (white)				$ 98.12
1	3608F141-70		Trim, Door Top (black)				$ 96.37
2	3801F832-45		Bracket, Handle (left)				$ 20.07
2	3801F831-45		Bracket, Handle (right)				$ 20.13
3	WP74006515		Screw   (Replaces: 7101P681-60)				$ 7.96
4	WP74011767		Handle, Door (black)   (Replaces: 7701P516-60)				$ 236.89
4	WP74011768		Handle, Door (white)   (Replaces: 7701P517-60)			Immediately	$ 217.45
5	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 16.74
6	2402W312-19		Lining, Door				$ 144.50
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 10.57
8	7101P208-60		Screw				$ 11.92
9	7002P246-60		Insulation, Oven Door				$ 58.49
10	WP74005546		Spacer, Rubber   (Replaces: 8010P130-60)				$ 9.95
11	WPW10162384		Gasket, Door   (Replaces: W10162384)			Immediately	$ 92.59
12	3601F373-51		Baffle, Oven Door Window				$ 256.44
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
14	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 201.23
15	7902P736-60		Glass, Door (white)		Appelez-nous	-
15	7902P797-60		Glass, Door (black)		Appelez-nous	-
16	3807F708-70		Trim, Door Bottom (black)				$ 63.97
16	WP3807F708-71		Trim, Door Bottom (white)   (Replaces: 3807F708-71)				$ 152.07
17	3801F886-51		Bracket, Glass				$ 38.25
18	WP3608F116-71		Trim, Door Side (white (right Hand))   (Replaces: 3608F116-71)				$ 117.61
18	3608F116-70		Trim, Door Side (black (right Hand))				$ 49.75
18	WP3608F117-71		Trim, Door Side (white (left Hand))   (Replaces: 3608F117-71)				$ 117.00
18	3608F117-70		Trim, Door Side (black (left Hand))				$ 49.73
