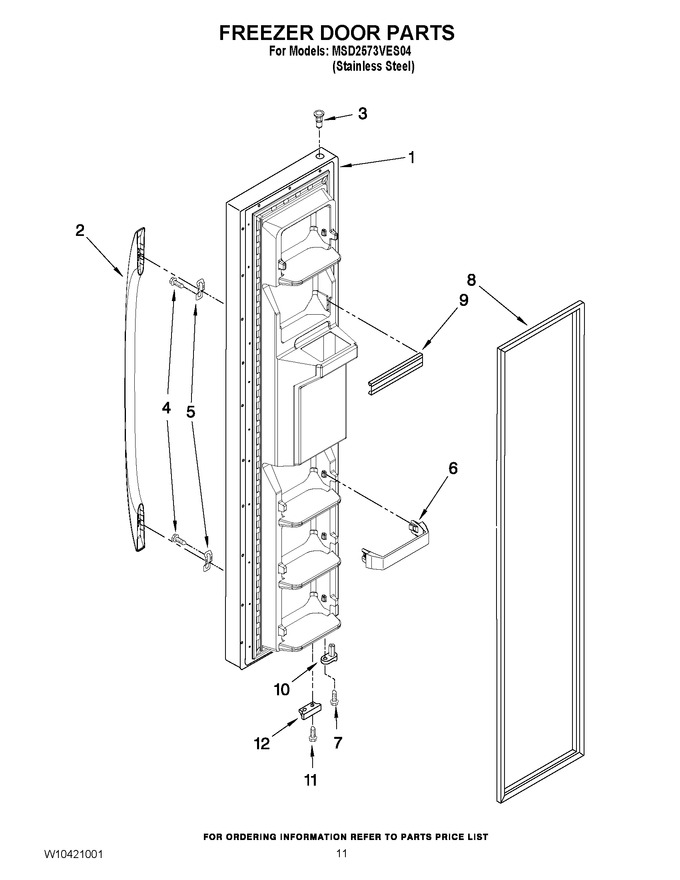

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365709 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | WPW10170743 | Handle (Replaces: W10170743) |
|
$ 328.97 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 4 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 5 | WP2255411 | Trim, Handle (Replaces: 2255411) |
|
$ 32.90 | |||||
| 6 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 55.34 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (Replaces: 2309533) |
|
$ 299.24 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 21.84 | ||||
| 10 | 2323535 | Door Closer, Upper Cam |
|
$ 33.97 | |||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | 2323534B | Bracket, Door Stop |
|
- |
