SELECT A DIAGRAM

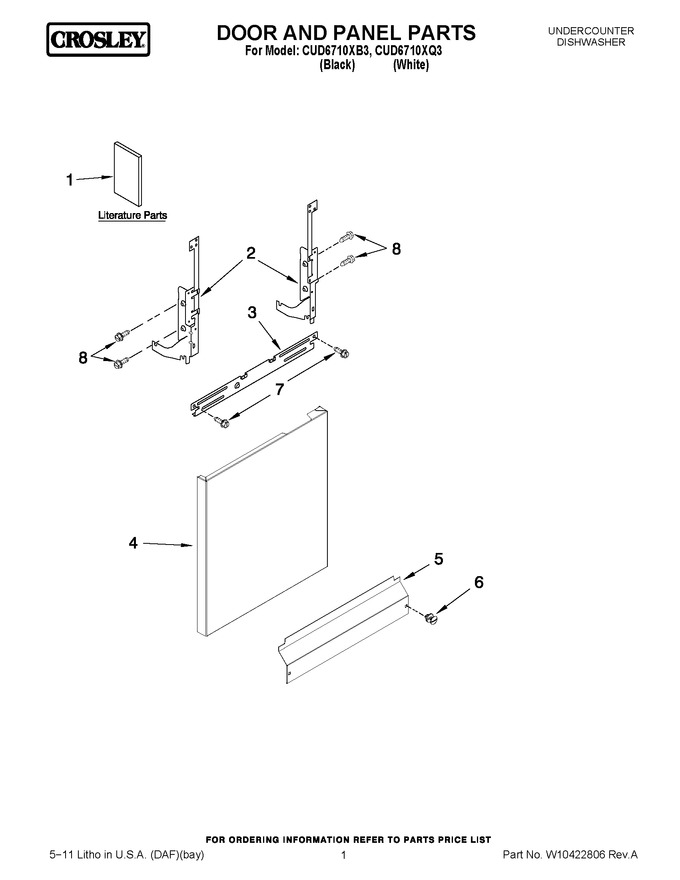

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10292953		Tech Sheet, English		Appelez-nous	-
1	W10292970		Tech Sheet, French		Appelez-nous	-
1	W10282553		Instructions, Installation		Appelez-nous	-
1	W10398606		Energy Guide		Appelez-nous	-
1	W10275150		Guide, Use & Care English/french		Appelez-nous	-
1	W10275151		Guide, Use & Care Spanish		Appelez-nous	-
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 64.59
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 75.54
3	8268983		Stiffener, Door				$ 38.77
4	WPW10274895		Panel Front (black)   (Replaces: W10274895)				$ 368.87
4	WPW10274896		Panel Front (white)   (Replaces: W10274896)				$ 326.26
5	W11763736		Access Panel (black)   (Replaces: W10237243)			Immediately	$ 38.03
6	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 27.35
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 7.62
8	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92

    View Diagram in Separate Window       Print Part List
