Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12978035L Door, Left (satina) Appelez-nous -
1 12978033LGW Door, Left (white) Appelez-nous -
2 12978034L Door, Right (satina) Appelez-nous -
2 12978032LGW Door, Right (white) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 WPW10289497 Bucket, Door (gallon (1))   (Replaces: W10289497) In-Stock Immediately $ 72.98

5 WPW10371194 Bucket, Door (medium (3))   (Replaces: W10371194) In-Stock Immediately $ 69.51

6 WP12722803W Mullion, Door (white)   (Replaces: 12722803W) In-Stock Immediately $ 290.84

6 WP12722803AP Mullion, Door (apollo Grey)   (Replaces: 12722803AP) Special Order $ 170.11

7 W11311945 Screw   (Replaces: 12990204) Special Order $ 13.25

8 W10830162 Gasket, Door (apollo Grey)   (Replaces: W10179332) In-Stock Immediately $ 223.74

8 W10830189 Gasket, Door (white)   (Replaces: W10163894) Special Order $ 255.07

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 178.40

9 WPW10222984K Handle, Door (white)   (Replaces: W10222984) Special Order $ 184.91

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

11 W11703060 Stop, Door (apollo Grey)   (Replaces: 12968202AP) Special Order $ 13.91

11 12968202W Stop, Door (white) Special Order $ 62.36

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Mount, Handle   (Replaces: 12992902) Special Order $ 10.72

14 WP13005401SP Sleeve-can Disp.   (Replaces: 13005401SP) In-Stock Immediately $ 71.21

15 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 55.31

15 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 7.34

16 W10169346 Bucket-can Disp. Special Order $ 49.22


    View Diagram in Separate Window     Print Icon   Print Part List

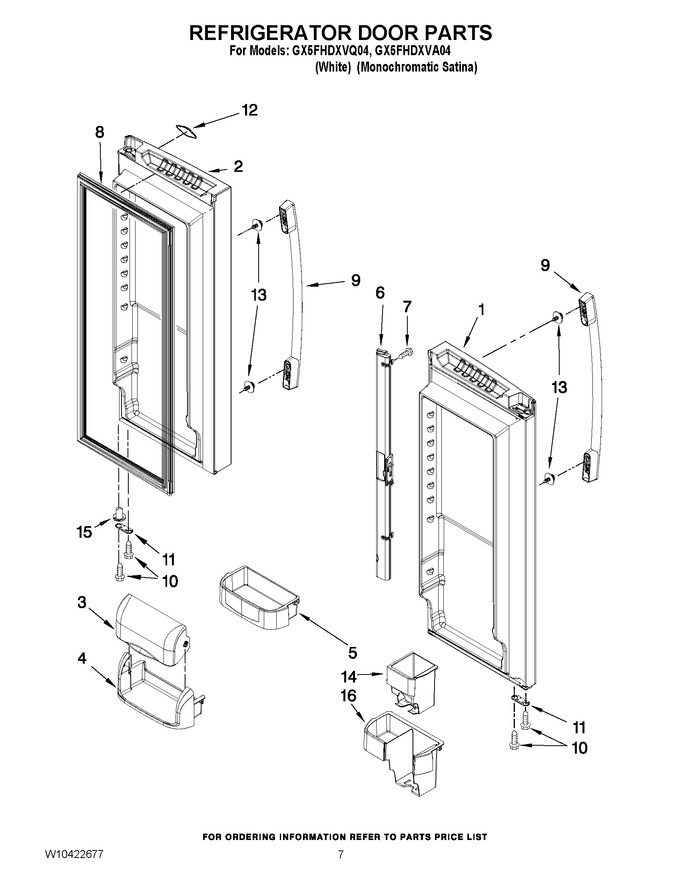

Diagram for GX5FHDXVQ04
