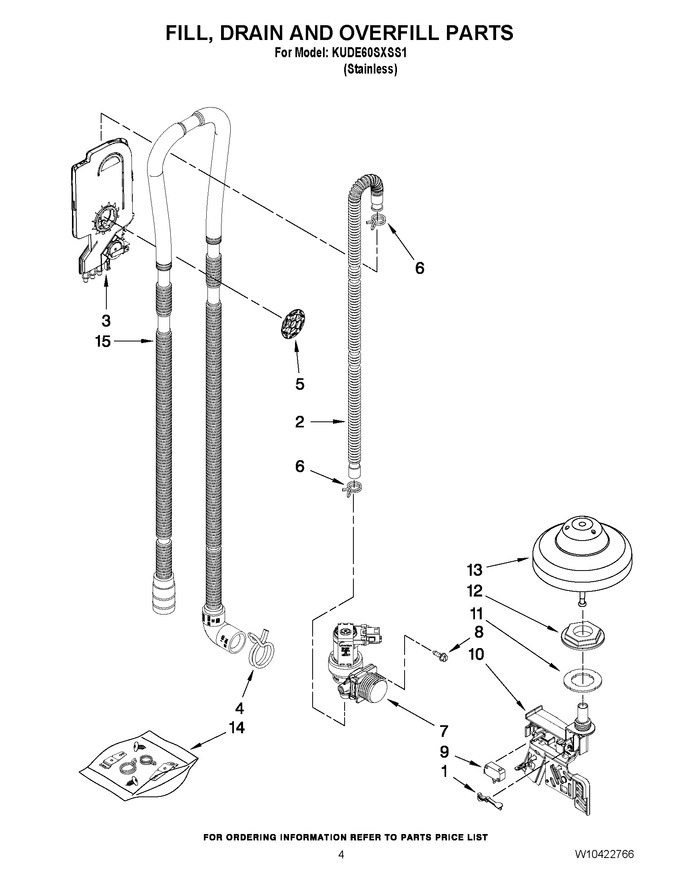

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overfill Switch (Replaces: W10195037) |
|
Immediately | $ 10.57 | ||||
| 2 | W10743461 | Hose, Inlet (Replaces: W10321919) |
|
$ 92.78 | |||||
| 3 | WPW10458714 | Tank, Regen (Replaces: W10362873) |
|
$ 92.34 | |||||
| 4 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.93 | ||||
| 5 | W11387338 | Nut, Inlet (Replaces: W10195786) |
|
$ 13.37 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 7.94 | ||||
| 7 | W11175767 | Fill Valve Assembly (Replaces: W10365756) |
|
$ 169.85 | |||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10195039 | Switch, Overfill Control (Replaces: W10195039) |
|
Immediately | $ 69.68 | ||||
| 10 | W10873429 | Standpipe, Overfill (also Order No.11) (Replaces: W10195035) |
|
Immediately | $ 21.78 | ||||
| 11 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 43.57 | ||||
| 12 | WPW10195038 | Nut, Standpipe (Replaces: W10195038) |
|
Immediately | $ 7.58 | ||||
| 13 | WPW10195036 | Float & Retainer Assembly (Replaces: W10195036) |
|
Immediately | $ 79.54 | ||||
| 14 | WPW10292152 | Miscellaneous Parts Bag (contains 2 Hose Clamps, Screws & 2 Under Counter Brackets) (Replaces: W10292152) |
|
Immediately | $ 53.34 | ||||
| 15 | WPW10358302 | Drain Loop With Check Valve Assembly (Replaces: W10358302) |
|
Immediately | $ 73.20 |
