SELECT A DIAGRAM

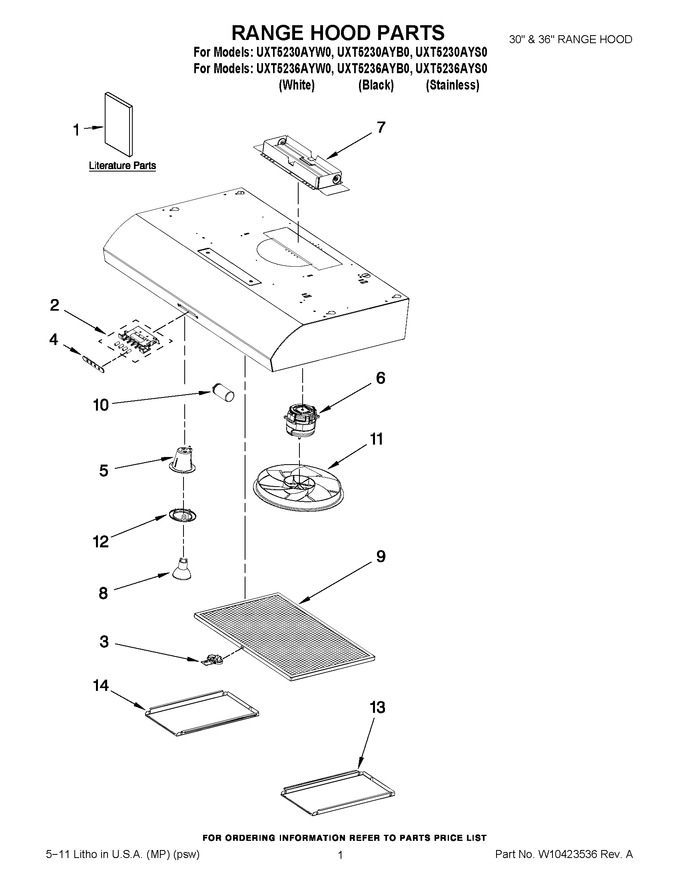

01 - Range Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10400323		Guide, Use & Care		Appelez-nous	-
2	WPW10419516		Control, Buttons   (Replaces: W10419516)				$ 269.50
3	W10416841		Latch, Filter				$ 11.96
4	W10416838		Cover, Buttons				$ 27.75
5	WPW10370558		Socket, Bulb   (Replaces: W10370558)				$ 78.69
6	W10416839		Motor				$ 438.05
7	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 176.02
8	WPW10291579		Lamp   (Replaces: W10291579)			Immediately	$ 186.21
9	W11177751		Grease Filter   (Replaces: W10419114)			Immediately	$ 47.73
10	W10416842		Capacitor				$ 84.93
11	W10416840		Fan				$ 90.15
12	W10351924		Bezel, Lamp				$ 177.83
13	W10419527		Side Panel, Right (black-36``)		Appelez-nous	-
13	W10419517		Side Panel, Right (black-30``)		Appelez-nous	-
13	W10419522		Side Panel, Right (white-30``)				$ 154.15
13	W10416843		Side Panel, Right (stainless-30``)				$ 140.76
13	W10419530		Side Panel, Right (white-36``)		Appelez-nous	-
13	W10419535		Side Panel, Right (stainless-36``)				$ 111.54
14	W10419523		Side Panel, Left (white-30``)				$ 154.15
14	W10416844		Side Panel, Left (stainless-30``)				$ 145.69
14	W10419521		Side Panel, Left (black-30``)		Appelez-nous	-
14	W10419532		Side Panel, Left (stainless-36``)				$ 151.95
14	W10419528		Side Panel, Left (white-36``)		Appelez-nous	-
14	W10419526		Side Panel, Left (black-36``)		Appelez-nous	-
NI	W10388168		Mounting Plate Round Vent 7`` (17.8 Cm)				$ 37.92
NI	31462A		Cleaner/polish (for Stainless Model Only)		Appelez-nous	-
NI	W10355451		Round Damper 7`` (17.8 Cm)				$ 42.50
NI	W10386873		Charcoal Filter Kit			Immediately	$ 38.13
NI	WPW10291572		Damper 3 1/4`` X 10`` (8.3 X 25.4 Cm)   (Replaces: W10291572)				$ 176.02
NI	W10613691		Power Cord Kit   (Replaces: W10355452)				$ 52.92

    View Diagram in Separate Window       Print Part List
