SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly

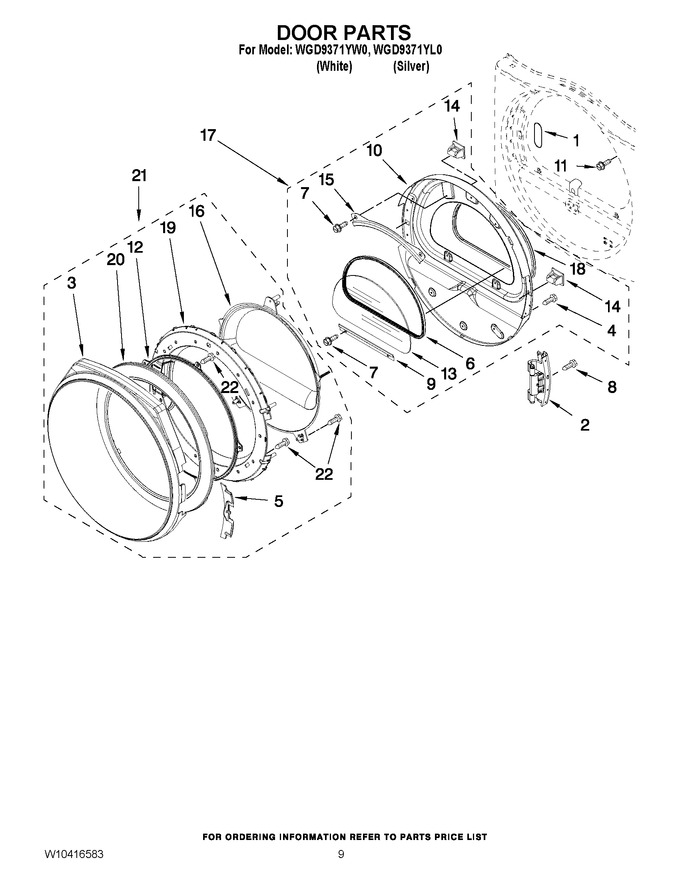

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label-hinge Hole Cover   (Replaces: W10256915)				$ 73.86
2	WPW10304672		Door Hinge Assembly   (Replaces: W10304672)			Immediately	$ 209.23
3	W10215757		Trim, Door Ring Outer (white)				$ 95.49
3	W10215823		Trim, Door Ring Outer (silver)				$ 132.75
4	W11116979		Screw,8-18 X 1/2   (Replaces: 8534044)				$ 12.38
5	W10215766		Cover, Door Hinge (white)				$ 26.09
5	W10215825		Cover, Door Hinge (silver)		Appelez-nous	-
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 25.40
7	WP3373329		Screw   (Replaces: 3393258)				$ 7.67
8	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 7.67
9	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 16.21
10	W11690171		Door Assembly Inner (includes Item. 1 & 14 )   (Replaces: W10363674)				$ 184.04
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.63
12	N/P		Screen, Door (not Servicable, Order Item 19)		Appelez-nous	-
13	WPW10286878		Window   (Replaces: W10286878)				$ 247.28
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.00
15	8519356		Retainer (upper)		Appelez-nous	-
16	W10215764		Door, Intermediate Stationary				$ 97.85
17	W10270216		Inner Door Assembly				$ 141.94
18	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 119.44
19	W10215762		Door Intermediate Rotational		Appelez-nous	-
20	N/P		Trim-door Inner Ring (not Servicable, Order Item 19)		Appelez-nous	-
21	W10371561		Door Assembly Outer (white)				$ 227.16
21	W10371562		Door Assembly Outer (silver)				$ 226.70
22	W10850046		Screw, 8-18 X .625   (Replaces: 9742177)			Immediately	$ 6.80

    View Diagram in Separate Window       Print Part List
