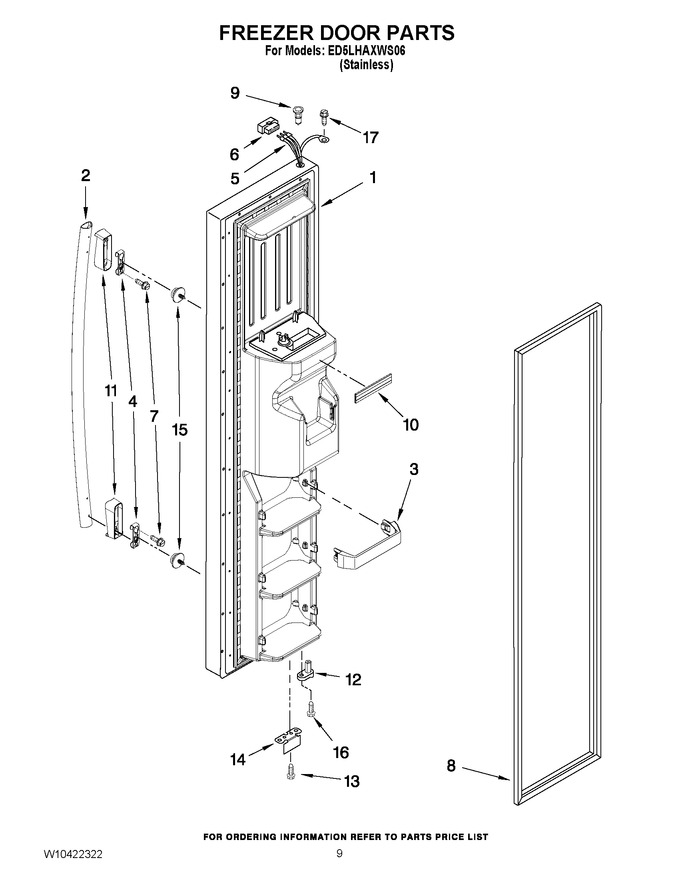

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321299 | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | WPW10257118K | Handle (Replaces: W10257118) |
|
$ 177.29 | |||||
| 3 | WP2309718 | Door Trim (Replaces: 2309718) |
|
$ 55.34 | |||||
| 4 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 32.90 | |||||
| 5 | 2198619 | Dispenser Harness |
|
- | |||||
| 6 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 22.35 | |||||
| 7 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.12 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (Replaces: 2309533) |
|
$ 299.24 | |||||
| 9 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 7.34 | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 21.84 | ||||
| 11 | W10127772 | Handle, Endcap |
|
$ 49.75 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.80 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 14 | W10185567 | Bracket, Door Stop |
|
- | |||||
| 15 | WPW10288153 | Screw, Mounting (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 16 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 17 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 |
