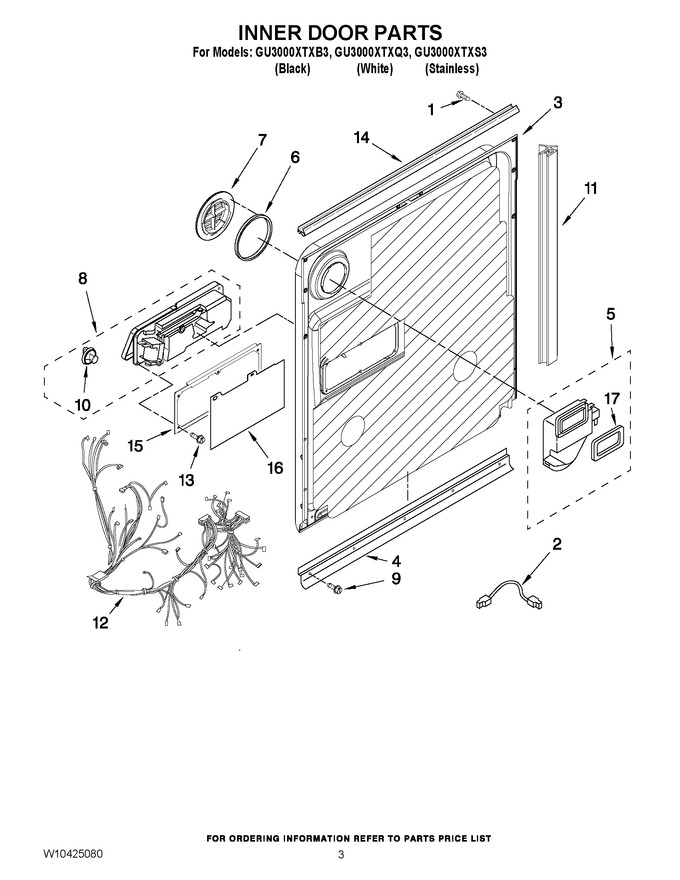

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw, Door (Replaces: W10348409) |
|
Immediately | $ 7.38 | ||||
| 2 | 8545608 | Harness, Vent Motor |
|
$ 152.37 | |||||
| 3 | WPW10164357 | Inner Door Mastic Assembly (also Order Item 6) (Replaces: W10164357) |
|
$ 336.33 | |||||
| 4 | WP8268937 | Inlet, Air (Replaces: 8268937) |
|
Immediately | $ 53.16 | ||||
| 5 | WPW10164259 | Vent Assembly (also Order Item 6) (Replaces: W10164259) |
|
$ 188.01 | |||||
| 6 | WP8269259 | Gasket, Vent (Replaces: 8269259) |
|
Immediately | $ 57.15 | ||||
| 7 | WP8545536 | Deflector, Vent (also Order Item 6) (Replaces: 8545536) |
|
$ 74.96 | |||||
| 8 | WPW10199696 | Dispenser, Assembly (Replaces: W10224429) |
|
$ 190.08 | |||||
| 9 | W11631670 | Screw (Replaces: 8281217) |
|
$ 13.25 | |||||
| 10 | WP8558307 | Cap, Rinse Aid (Replaces: 8558307) |
|
Immediately | $ 23.22 | ||||
| 11 | 8574160 | Seal. Side |
|
$ 83.95 | |||||
| 12 | WPW10413097 | Wiring Harness Main (Replaces: W10328606) |
|
$ 265.77 | |||||
| 13 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 14 | WP8535660 | Seal, Console/door (Replaces: 8535660) |
|
$ 167.41 | |||||
| 15 | WPW10462232 | Bracket Dispenser (Replaces: 8535637) |
|
$ 34.01 | |||||
| 16 | W10385977 | Shield, Dispenser |
|
$ 27.55 | |||||
| 17 | WP8269258 | Seal. Front (Replaces: 8269258) |
|
Immediately | $ 87.17 |
