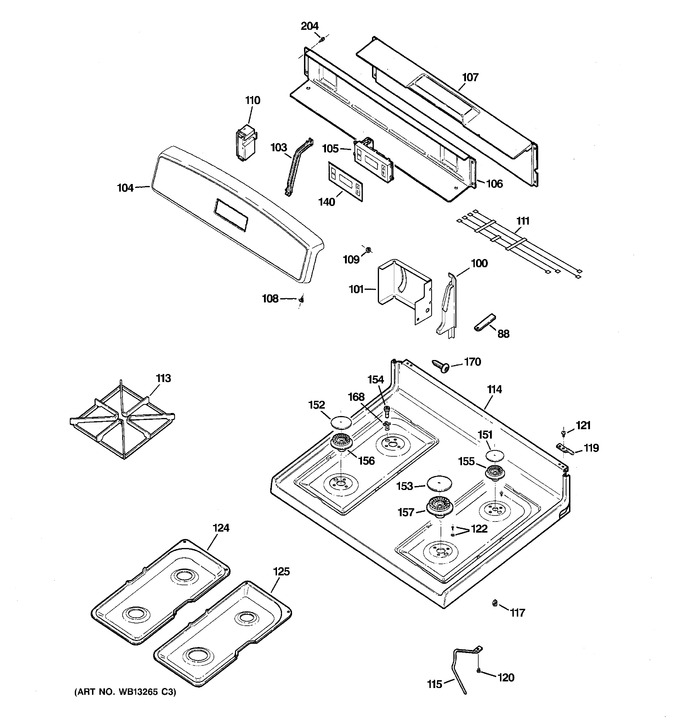

1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door & Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 88 | WB2K62 | Pad Felt (2") |
|
- | |||||
| 100 | WB07K10270 | End Support Rt |
|
- | |||||
| 100 | WB07K10271 | End Support Lf |
|
- | |||||
| 101 | WB37K10003 | Bracket Cook Top Rg |
|
- | |||||
| 101 | WB37K10004 | Bracket Cook Top Lf |
|
- | |||||
| 103 | WB02K10155 | Bracket Control |
|
- | |||||
| 104 | WB36K10672 | Trim Control |
|
- | |||||
| 105 | WB27K10337 | Control Oven To9 (gas) |
|
- | |||||
| 106 | WB34K10093 | Cover Back Upper |
|
- | |||||
| 107 | WB34K10094 | Cover Back Lower |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.57 | |||||
| 109 | WB1X5743 | Speednut |
|
- | |||||
| 110 | WS01F02044 | Spark Module 4+0 (Replaces: WB13K10029) |
|
$ 62.96 | |||||
| 111 | WB18K10039 | Harness Hv |
|
- | |||||
| 113 | WB31K10032 | Grate (taupe) |
|
- | |||||
| 114 | WB62K10044 | Cooktop (bsqt) |
|
- | |||||
| 115 | WB02K10276 | Support Cooktop |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 120 | WB1K45 | Screw Washer Asm |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 122 | WS01A02448 | Ckt Screw (Replaces: WB01K10106) |
|
Immediately | $ 4.07 | ||||
| 124 | WB34K10016 | Pan Unit-left (taupe) |
|
- | |||||
| 125 | WB34K10015 | Pan Unit-right (taupe) |
|
- | |||||
| 140 | WB27K10266 | Overlat T09 |
|
- | |||||
| 151 | WB29K10003 | Cap-burner Small Taupe |
|
- | |||||
| 152 | WB29K10005 | Cap-burner Med Taupe |
|
- | |||||
| 153 | WB29K10008 | Cap-burner Large Taupe |
|
- | |||||
| 154 | WB13K10021 | Electrode Top |
|
- | |||||
| 155 | WS01F02309 | Small Burner V 5k (Replaces: WB16K10070) |
|
Immediately | $ 24.21 | ||||
| 156 | WS01F02306 | Burner Medium (9500) (Replaces: WB16K10055) |
|
Immediately | $ 82.59 | ||||
| 157 | WS01F02300 | Burner-large 12k (Replaces: WB16T10046) |
|
Immediately | $ 86.48 | ||||
| 168 | WG02A00592 | Clip-electrode (Replaces: WB01K10007) |
|
Immediately | $ 8.58 | ||||
| 170 | WB01K10018 | Screw 8-18 (bsqt) |
|
- | |||||
| 204 | WS01A00654 | Screw (blk) (Replaces: WB1K42) |
|
$ 14.29 | |||||
| 204 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- |
