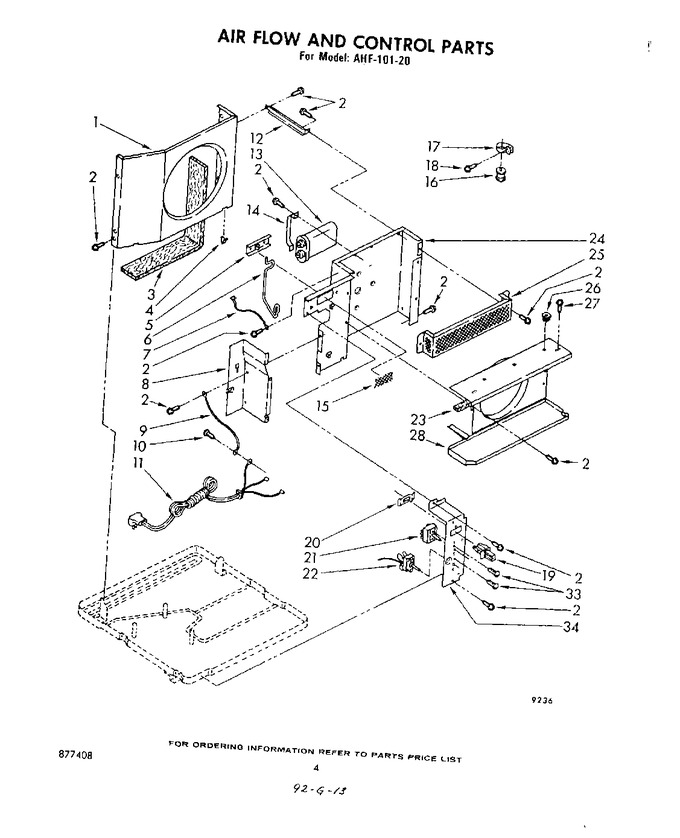

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856037		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
2	WP308685		Screw, S.m. No.10 X 1/2 (repair)   (Replaces: 488861)			Immediately	$ 7.08
3	948090		Seal, Condenser Top		Appelez-nous	-
3	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
4	644401		Clip, Retainer		Appelez-nous	-
5	644206		Door, Exhaust		Appelez-nous	-
6	856042		Arm, Exhaust Door		Appelez-nous	-
7	857568		Wire, Ground		Appelez-nous	-
8	994560		Extension, Dividing Wall (requires Insulation Part No. 469938)		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	646306		Cord, Appliance		Appelez-nous	-
12	858663		Support, Unit (2)		Appelez-nous	-
13	949092		Capacitor, Running		Appelez-nous	-
14	475844		Bracket, Capacitor		Appelez-nous	-
15	856929		Screen, Exhaust Door		Appelez-nous	-
16	949177		Thermistor		Appelez-nous	-
17	949176		Clamp		Appelez-nous	-
18	WP965173		Screw, S.m. No.8 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
19	947468		Actuator, Exhaust Door		Appelez-nous	-
20	858765		Spring, Detent		Appelez-nous	-
21	948315		Switch, Rotary		Appelez-nous	-
22	949431		Control, Tempetature		Appelez-nous	-
23	948220		Insulation, Evaporator Cover		Appelez-nous	-
24	947867		Dividing Wall (requires Insulation Part No. 469938)		Appelez-nous	-
25	856912		Guard, Evaporator Impeller		Appelez-nous	-
26	487808		Fastener, Snap		Appelez-nous	-
27	WP488729		Screw, Sems Sm No.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
28	948219		Shroud, Evaporator (includes Item 23)		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (4)		Appelez-nous	-
34	877408		List, Repair Parts		Appelez-nous	-
34	47263		Wire, White (25 Ft.)		Appelez-nous	-
34	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
34	949221		Tech Sheet (service Information)		Appelez-nous	-
34	949846		Guide, Energy		Appelez-nous	-
34	947596		Guide, Use & Care		Appelez-nous	-
34	949787		Guide, Consumers Buy		Appelez-nous	-
34	996966		Panel, Control		Appelez-nous	-
34	649939		Insulation, Cabinet (5/8`` X 13`` X 25-11/16``)		Appelez-nous	-
34	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
34	WP279368		Cement (1 Oz.) (attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
34	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
34	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
34	47261		Wire, Black (25 Ft.)		Appelez-nous	-
34	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
