SELECT A DIAGRAM

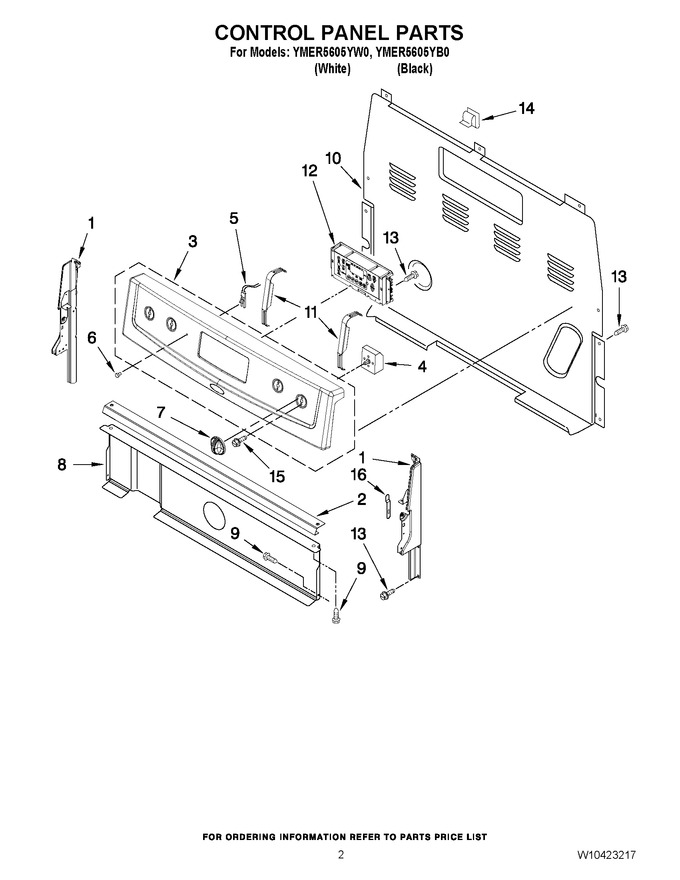

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 38.21
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 54.75
1	W11219664		Endcap (black Left Hand)   (Replaces: W10184437)				$ 138.45
1	W11219665		Endcap (black Right Hand)   (Replaces: W10184438)				$ 40.65
2	W10525121		Brkt-mntg, Console   (Replaces: W10182322)				$ 88.97
3	W10276853		Panel, Console (white)				$ 114.31
3	W10276854		Panel, Console (black)		Appelez-nous	-
4	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	5500-287		Switch, Infinite ((lr)(rf))   (Replaces: 3148951)			Immediately	$ 49.03
4	5500-287		Switch, Infinite ((lf)(rr))   (Replaces: 3148953)			Immediately	$ 49.03
5	WP8523265		Light, Indicator   (Replaces: 8523265)			Immediately	$ 91.76
6	WP3196068		Lens, Light   (Replaces: 3196068)			Immediately	$ 5.63
7	W11193834		Knob, Infinite (black)   (Replaces: W10211372)				$ 80.08
7	WPW10211371		Knob, Infinite (white)   (Replaces: W10211371)			Immediately	$ 19.11
8	8053912		Shield, Heat				$ 34.55
9	3196166		Screw				$ 6.62
10	WP8272473		Cover, Upper   (Replaces: 8272473)				$ 197.14
11	W11230932		Brkt, Mntg Eoc   (Replaces: W10138683)			Immediately	$ 76.33
12	W10310972		Control, Range Lcc90 (white)				$ 433.43
12	WPW10310971		Control, Range Lcc90 (black)   (Replaces: W10310971)				$ 352.55
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	WP8273564		Clip   (Replaces: 8273564)				$ 11.39
15	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
16	3196200		Clip, Spring				$ 9.41

    View Diagram in Separate Window       Print Part List
