01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Icemaker Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:

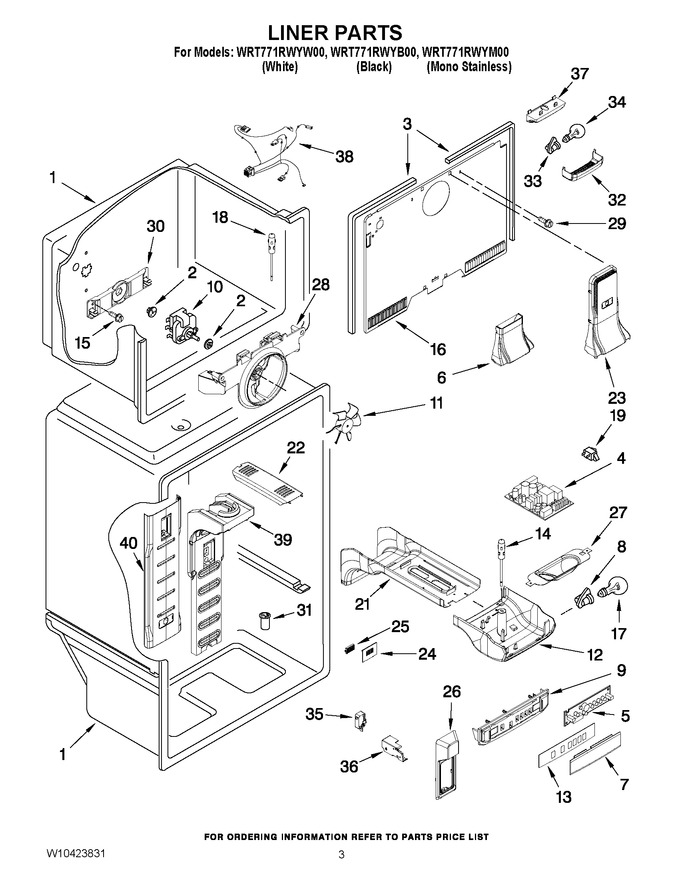

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 41.55 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2254360) |
|
$ 25.31 | |||||
| 4 | W10392194 | Control, Hercules |
|
$ 308.64 | |||||
| 5 | WPW10336519 | Control, Ui (Replaces: W10336519) |
|
$ 319.15 | |||||
| 6 | W10396926 | Tower Conn Assy Fc |
|
$ 39.05 | |||||
| 7 | W10339195 | Fascia Lens |
|
$ 21.53 | |||||
| 8 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 7.92 | |||||
| 9 | W10383445 | Fascia Control |
|
$ 33.79 | |||||
| 10 | WP2315539 | Fan Motor (Replaces: 2315539) |
|
Immediately | $ 88.26 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 96.85 | ||||
| 12 | W10316942 | Control Box |
|
$ 90.88 | |||||
| 13 | W10344467 | Overlay |
|
- | |||||
| 14 | WPW10384183 | Thermistor, Rc (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 16 | W10385129 | Cover, Evaporator |
|
- | |||||
| 17 | WPA3073101 | Light Bulb (2) (Replaces: 2326255) |
|
Immediately | $ 11.45 | ||||
| 18 | WPW10383615 | Thermistor, Fc (Replaces: W10383615) |
|
Immediately | $ 46.12 | ||||
| 19 | W11384469 | Rocker Arm (2) Switch (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 102.92 | |||||
| 22 | W10309097 | Light Cover, Rc |
|
$ 49.40 | |||||
| 23 | W10305174 | Air Tower |
|
$ 43.06 | |||||
| 24 | WPW10330850 | Grille, Air Filter (Replaces: W10330850) |
|
$ 33.80 | |||||
| 25 | W10311524 | Air Filter (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 26 | W11243624 | Facade, Dispenser (Replaces: W10386345) |
|
Immediately | $ 102.09 | ||||
| 27 | 2223680 | Shield, Light |
|
$ 84.17 | |||||
| 28 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 29.22 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 30 | 2254454 | Bracket Evap. Fan, Rear |
|
Immediately | $ 67.90 | ||||
| 31 | WP2210509 | Valve (Replaces: 2210509) |
|
$ 89.24 | |||||
| 32 | WPW10313918 | Light Cover, Fc (Replaces: W10313918) |
|
Immediately | $ 85.81 | ||||
| 33 | W11661565 | Light Socket, Fc (Replaces: W10440814) |
|
Immediately | $ 32.24 | ||||
| 34 | W11518235 | Light Bulb, Fc (Replaces: W10473925) |
|
Immediately | $ 26.36 | ||||
| 35 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 65.12 | |||||
| 36 | W11362531 | Cover, Switch (Replaces: W10339200) |
|
$ 33.34 | |||||
| 37 | WPW10313917 | Light Housing, Fc (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 38 | WPW10283809 | Wire Assy Evap Fan (Replaces: W10283809) |
|
$ 116.37 | |||||
| 39 | WPW10395376 | Multiflow Assembly (Replaces: W10395376) |
|
$ 79.90 | |||||
| 40 | WPW10356895 | Air Tower, Rc (Replaces: W10356895) |
|
$ 145.34 |
