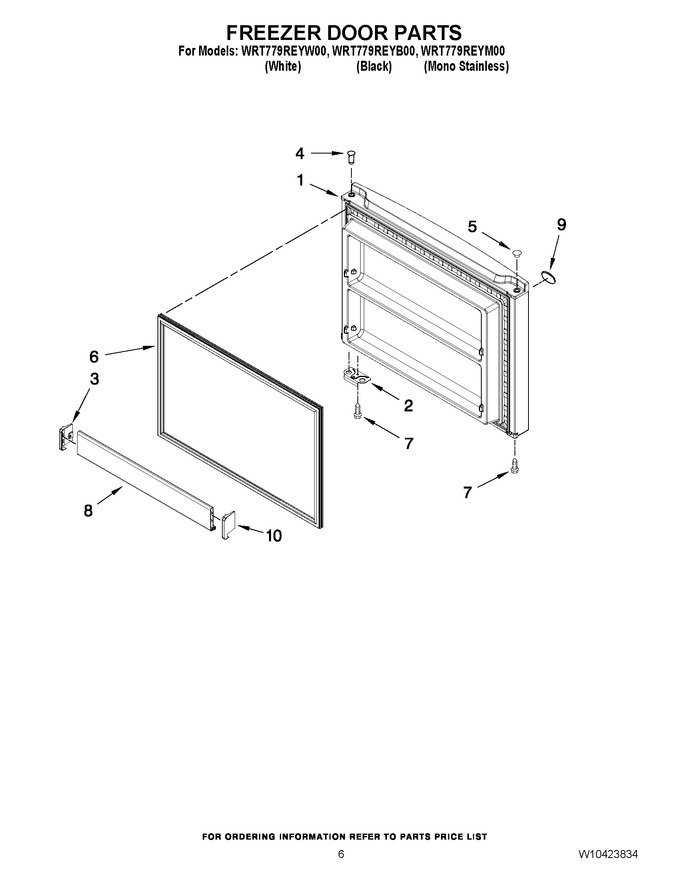

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330389 | Freezer Door (includes Illus. 4 & 6) (white) |
|
- | |||||
| 1 | W10354736 | Freezer Door (includes Illus. 4 & 6) (black) |
|
- | |||||
| 1 | W10354739 | Freezer Door (includes Illus. 4 & 6) (mono Stainless) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | W10338485 | Endcap Trim Ls |
|
$ 10.41 | |||||
| 4 | W11189115 | Thimble (Replaces: W10334042) |
|
$ 11.44 | |||||
| 5 | WP2254517 | Hole Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 5 | WP2212651 | Hole Plug, Hinge (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 5 | WP2212648 | Hole Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | 2159327 | Door Gasket, Magnetic (beige) (Replaces: 2214966) |
|
Immediately | $ 148.12 | ||||
| 6 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 292.22 | |||||
| 6 | W11624958 | Door Gasket, Magnetic (grey) (Replaces: W10279559) |
|
$ 288.83 | |||||
| 7 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 8 | W10469910 | Trim Door Shelf (Replaces: W10308873) |
|
$ 148.25 | |||||
| 9 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 9 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 10 | W10308871 | Endcap Trim Rs |
|
$ 10.44 |
