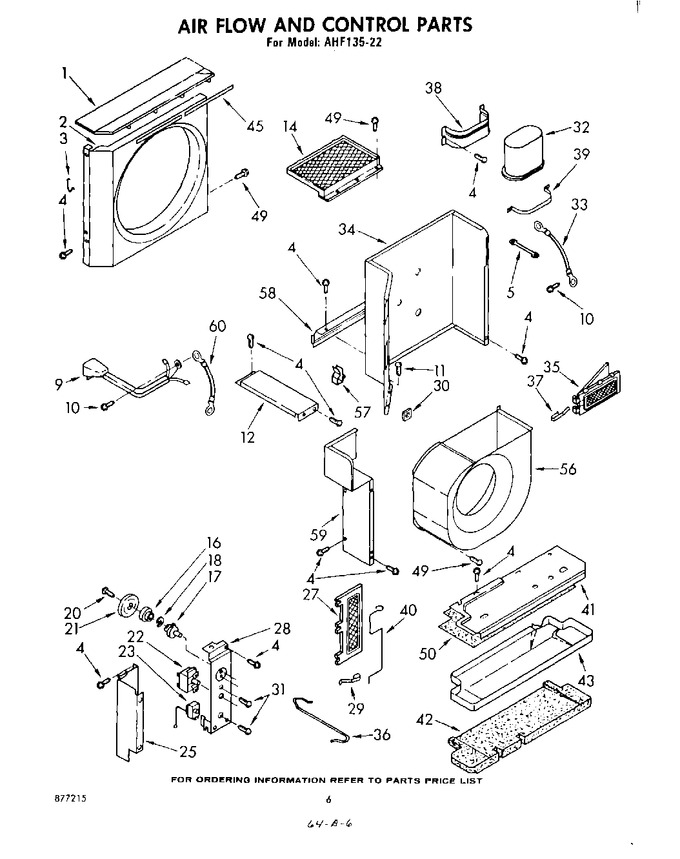

04 - Air Flow And Control


05 - Accessory , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997264		Cover, Condenser Shroud		Appelez-nous	-
2	997224		Shroud (requires Insulation No. 469938)		Appelez-nous	-
3	477442		Clip, Shroud (2)		Appelez-nous	-
4	WP308685		Screw, Repair   (Replaces: 488861)			Immediately	$ 7.08
4	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
5	648791		Clamp, Cable		Appelez-nous	-
9	61253		Cable, Appliance   (Replaces: 859444)				$ 25.10
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	488624		Screw, Small (8 X 3/8)		Appelez-nous	-
12	997262		Support, Unit		Appelez-nous	-
14	856506		Guard, Evaporator Impeller		Appelez-nous	-
16	647879		Bushing		Appelez-nous	-
17	852669		Shaft, Control		Appelez-nous	-
18	00647881		Spring, Washer   (Replaces: 647881)				$ 366.51
20	00487953		Screw, 8 X 1/2   (Replaces: 487953)				$ 159.66
21	647882		Cam		Appelez-nous	-
22	948306		Switch, Rotary		Appelez-nous	-
23	852658		Control, Temperature		Appelez-nous	-
25	997278		Cover, Control Access		Appelez-nous	-
27	997222		Door Assembly, Fresh Air		Appelez-nous	-
28	852217		Panel, Control		Appelez-nous	-
29	998178		Spring		Appelez-nous	-
30	948519		Sealer, Tube		Appelez-nous	-
31	488734		Screw, 6 X .175		Appelez-nous	-
32	947576		Capacitor		Appelez-nous	-
33	998177		Ground Wire		Appelez-nous	-
34	997208		Wall		Appelez-nous	-
35	997221		Door, Exhaust		Appelez-nous	-
36	859370		Wire, Control (fresh Air)		Appelez-nous	-
36	647883		Wire, Control Exhaust		Appelez-nous	-
37	859369		Spring		Appelez-nous	-
38	997218		Bracket, Capacitor Shield		Appelez-nous	-
39	997215		Bracket, Running Capacitor		Appelez-nous	-
40	997223		Actuator, Door		Appelez-nous	-
41	997269		Cover		Appelez-nous	-
42	997237		Insulation		Appelez-nous	-
43	997238		Pan, Evaporator		Appelez-nous	-
45	WP854334		Seal, Condenser Cover (rear)   (Replaces: 997267)				$ 12.55
45	997266		Seal, Condenser Cover (side)		Appelez-nous	-
45	948600		Seal, Condenser Cover (front)		Appelez-nous	-
49	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
50	948234		Insulation, Evaporator Cover		Appelez-nous	-
56	997220		Housing, Blower Wheel		Appelez-nous	-
57	947072		Clamp, Cable		Appelez-nous	-
58	997239		Adapter, Evaporator Header Plate		Appelez-nous	-
59	997342		Extension Assembly		Appelez-nous	-
60	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
60	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
60	484069		Cover, Winter				$ 62.49
60	998179		Packet, Flange Seal		Appelez-nous	-
60	947598		Guide, Use & Care		Appelez-nous	-
60	948437		Guide, Energy		Appelez-nous	-
60	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
60	877215		List Parts		Appelez-nous	-
60	997388		Ground Wire		Appelez-nous	-
60	649939		Insulation, Cabinet (5/8`` X 13`` X 25-11/16``)		Appelez-nous	-
60	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
60	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
60	855438		Insulation, Cabinet (top)		Appelez-nous	-
60	997236		Insulation, Base		Appelez-nous	-
60	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
60	47261		Wire, Black (25 Ft.)		Appelez-nous	-
60	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
60	47263		Wire, White (25 Ft.)		Appelez-nous	-
60	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
60	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
