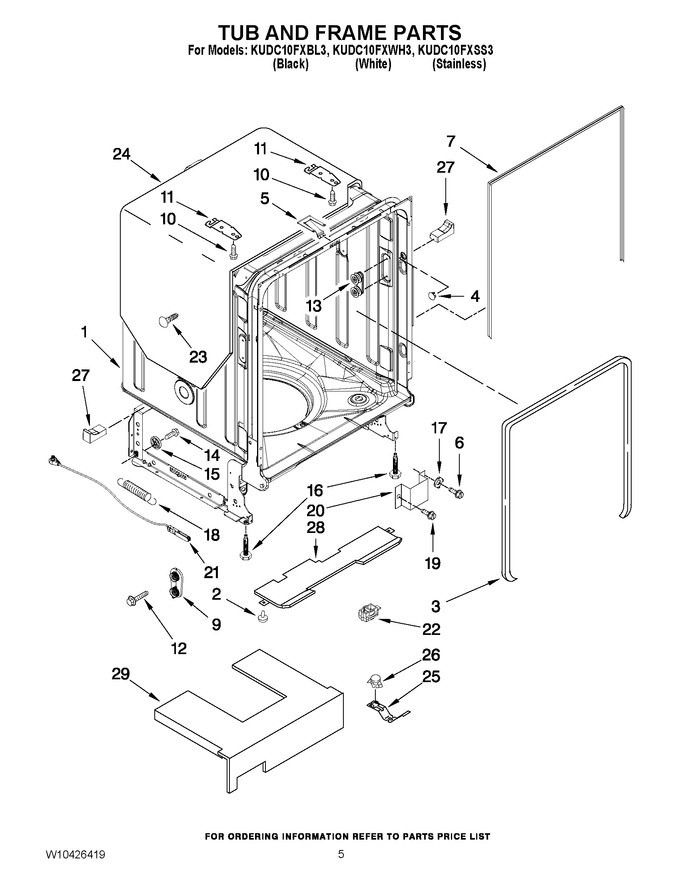

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10511199 | Tub Assembly (also Includes Heater Assembly) (Replaces: W10390304) |
|
$ 591.23 | |||||
| 2 | WP3400924 | Retainer, Push (Replaces: 3400924) |
|
Immediately | $ 40.85 | ||||
| 3 | W11177741 | Seal, Door (Replaces: W10300924) |
|
Immediately | $ 72.39 | ||||
| 4 | W10795980 | Plug Tub (Replaces: W10082838) |
|
Immediately | $ 13.55 | ||||
| 5 | WPW10300779 | Strike, Plate (Replaces: W10300779) |
|
Immediately | $ 91.23 | ||||
| 6 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 7.42 | |||||
| 7 | W10864081 | Seal, Cabinet (Replaces: W10179427) |
|
Immediately | $ 75.88 | ||||
| 9 | WPW10084086 | Door, Balance Assembly (Replaces: W10084086) |
|
Immediately | $ 29.72 | ||||
| 10 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 11 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 17.40 | ||||
| 12 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 6.80 | |||||
| 13 | WPW10505748 | Wheel, Tub (Replaces: W10195330) |
|
Immediately | $ 8.20 | ||||
| 14 | WPW10348411 | Screw (Replaces: W10348411) |
|
$ 9.74 | |||||
| 15 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 13.67 | |||||
| 16 | 8193716 | Leveler, Leg (Replaces: 8524584) |
|
Immediately | $ 80.06 | ||||
| 17 | WP3378128 | Washer Pronged Cup (Replaces: 3378128) |
|
$ 10.63 | |||||
| 18 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 33.02 | ||||
| 19 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.42 | |||||
| 20 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.58 | |||||
| 21 | 8194001 | Cable, Door Assembly (Replaces: W10158291) |
|
Immediately | $ 38.75 | ||||
| 22 | W10292870 | Protector |
|
$ 22.16 | |||||
| 23 | WP304666 | Retainer, Push (Replaces: 304666) |
|
$ 26.51 | |||||
| 24 | W10877094 | Shield, Sound Tub (Replaces: 8573239) |
|
$ 210.27 | |||||
| 25 | W10300703 | Bracket, Thermostat |
|
$ 18.44 | |||||
| 26 | WPW10195091 | Thermostat (Replaces: W10339563) |
|
Immediately | $ 36.55 | ||||
| 27 | W10195630 | Spacer, Tub Brace (left) |
|
$ 15.58 | |||||
| 27 | W10195631 | Spacer, Tub Brace (right) |
|
$ 15.47 | |||||
| 28 | WPW10746770 | Insulation, Bottom (Replaces: W10195368) |
|
$ 40.36 | |||||
| 29 | W10831329 | Absorber, Sound (Replaces: W10350437) |
|
Immediately | $ 38.97 |
