SELECT A DIAGRAM

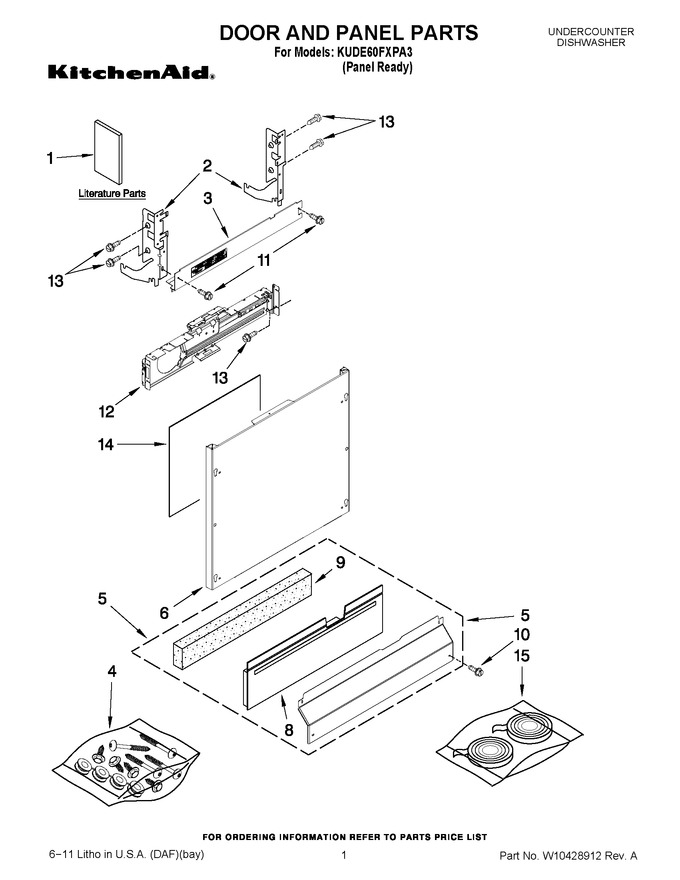

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Third Level Rack And Track Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10195005		Template, Panel		Appelez-nous	-
1	W10321621		Instructions, Installation		Appelez-nous	-
1	W10395350		Energy Guide		Appelez-nous	-
1	W10300929		Guide, Use & Care (english/french)		Appelez-nous	-
1	W10300597		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10321874		Tech Sheet/english		Appelez-nous	-
1	W10321875		Tech Sheet/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	W10850371		Vapor Barrier Assembly   (Replaces: W10321447)			Immediately	$ 29.59
4	WPW10637074		Panel Hardware Kit   (Replaces: W10195008)			Immediately	$ 67.55
5	WPW10526114		Access Panel (includes 8 & 9) (black)   (Replaces: W10368715)			Immediately	$ 163.77
6	W11113792		Panel, Full Front (black)   (Replaces: W10292632)			Immediately	$ 336.08
8	W10831329		Insulation, Access Panel   (Replaces: W10195629)			Immediately	$ 38.97
9	W10831329		Insulation   (Replaces: W10275524)			Immediately	$ 38.97
10	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 27.35
11	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
12	W11116870		Bracket, Panel Control   (Replaces: W10194911)				$ 80.96
13	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
14	W10234565		Insulation Front Panel				$ 62.61
15	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 26.82

    View Diagram in Separate Window       Print Part List
