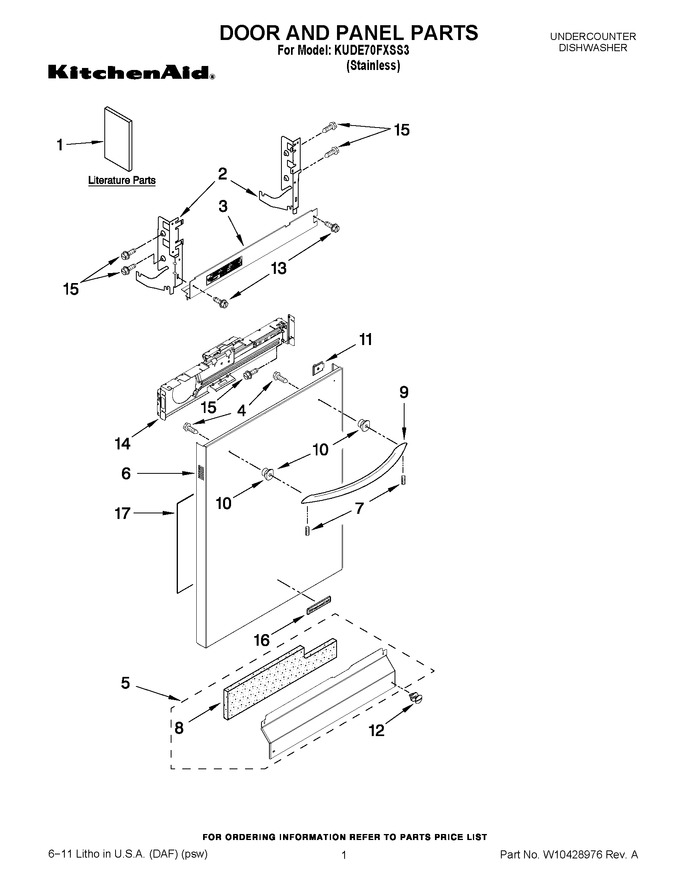

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10195614 | Tech Sheet/french |
|
- | |||||
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 1 | W10395350 | Energy Guide |
|
- | |||||
| 1 | W10300929 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10195613 | Tech Sheet/english |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 128.02 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321447) |
|
Immediately | $ 29.59 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10369029) |
|
Immediately | $ 163.77 | ||||
| 6 | WPW10195870 | Panel, Full Front (includes Items 10, 11 & 16) (stainless) (Replaces: W10195870) |
|
$ 357.45 | |||||
| 7 | WPW10307614 | Screw (Replaces: W10307614) |
|
Immediately | $ 6.80 | ||||
| 8 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 38.97 | ||||
| 9 | W10195738 | Handle Assembly (includes Item 7) (stainless) |
|
- | |||||
| 10 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 7.98 | ||||
| 11 | W10319007 | Light, Pipe |
|
$ 64.80 | |||||
| 12 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 27.35 | ||||
| 13 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 14 | W11116870 | Bracket, Panel Control (Replaces: W10194911) |
|
$ 80.96 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 16 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 17 | W11126003 | Insulation Front Panel (Replaces: W10315897) |
|
Immediately | $ 58.73 |
