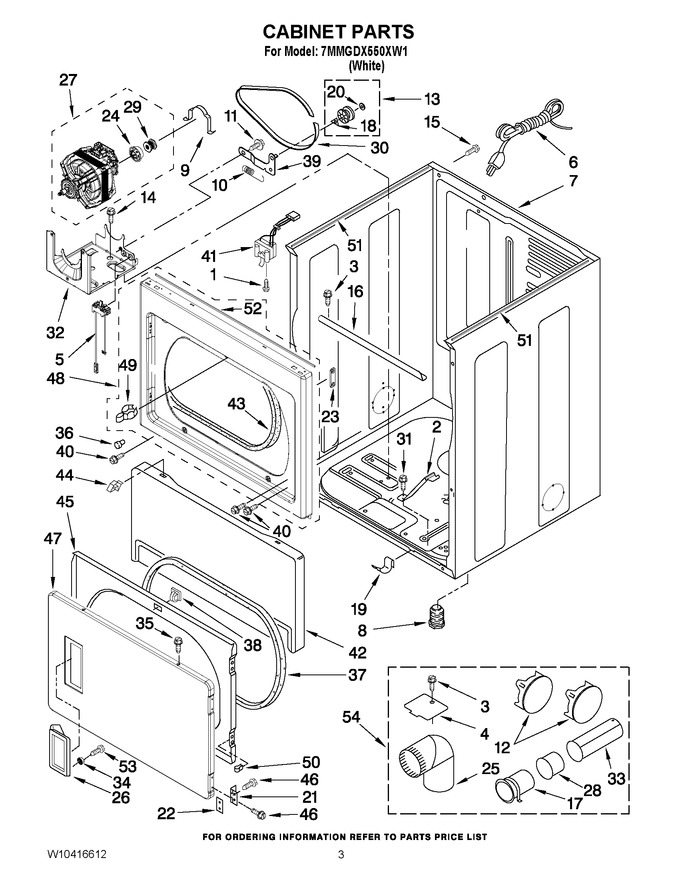

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10293911 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
2	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
3	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
4	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.47
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 32.45
6	W11222083		Cord, Power   (Replaces: 344020)				$ 113.96
7	W11417441		Cabinet   (Replaces: 8310656)				$ 396.15
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent   (Replaces: 49252)				$ 68.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
15	WP90767		Screw Ground   (Replaces: 8533971)			Immediately	$ 7.43
16	W10236068		Bracket, Cabinet				$ 22.02
17	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 86.36
18	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.71
19	WPW10291934		Retainer, Toe Kick (lower)   (Replaces: W10291934)				$ 7.33
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 6.80
21	W11175815		Hinge & Pin Assembly   (Replaces: 3389247)				$ 76.93
22	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.50
23	W10191265		Plug, Hinge Screw				$ 41.84
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 25.34
26	WPW10284182		Handle, Door   (Replaces: W10284182)			Immediately	$ 88.19
27	WPW10508324		Motor Assembly 60 Hz.   (Replaces: W10281085)			Immediately	$ 308.62
28	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 74.61
29	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 11.49
30	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 94.79
31	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 85.36
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
34	W10294344		Spacer, Handle Mount				$ 11.78
35	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 6.80
36	693152		Bumper				$ 10.36
37	WP3390735		Door Seal   (Replaces: 3390735)				$ 123.42
38	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 32.20
40	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
41	WP3406107		Door Switch Assembly   (Replaces: 3406107)			Immediately	$ 28.08
42	WP3406797		Toe, Panel (includes Item. 36)   (Replaces: 697215)				$ 225.23
43	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
44	WP3388229		Retainer, Toe Panel   (Replaces: 3388229)			Immediately	$ 7.61
45	280083		Door, Inner   (Replaces: 3392563)				$ 271.23
46	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.30
47	W10322551		Door, Outer   (Replaces: W10279721)				$ 148.12
48	W10115218		Front Panel				$ 303.59
49	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
50	3389249		Nut, Inner		Appelez-nous	-
51	W10336128		Seal, Cabinet				$ 13.57
52	W10312811		Foam Seal				$ 60.96
53	WPW10273971		Screw, 6-19 X 1/2   (Replaces: W10192860)			Immediately	$ 6.80
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
NI	WPW10131132		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: W10331132)				$ 68.23
