SELECT A DIAGRAM

02 - Cabinet


03 - Unit


04 - Air Flow And Control, Lit/optional


05 - Accessory Kit

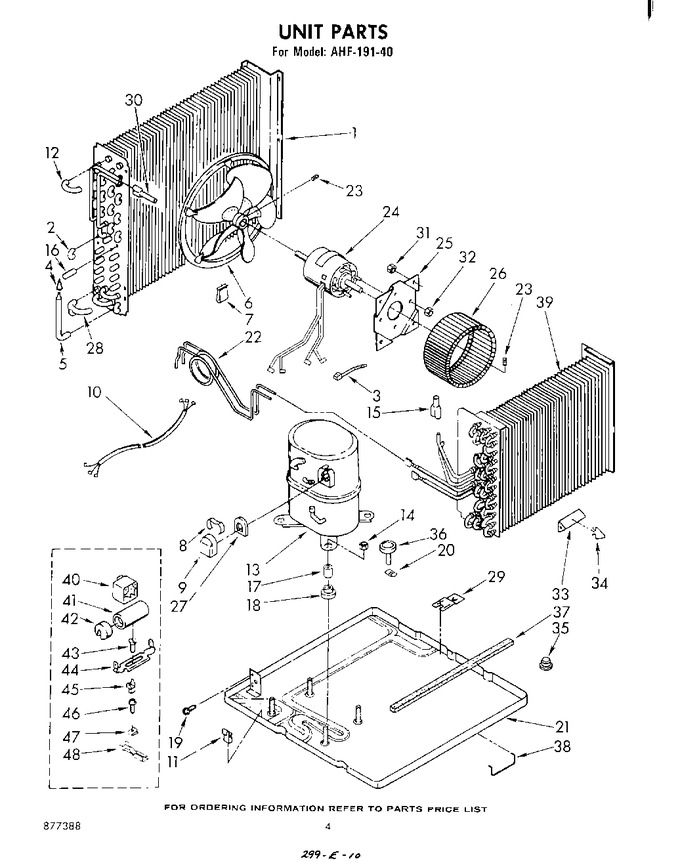

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	948874		Condenser		Appelez-nous	-
2	855199		Bend, Return (16)		Appelez-nous	-
3	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	997226		Blade, Fan		Appelez-nous	-
7	485334		Clip, Balancing		Appelez-nous	-
8	475062		Retainer, Cover		Appelez-nous	-
9	948515		Cover, Terminal		Appelez-nous	-
10	484136		Harness, Wiring		Appelez-nous	-
11	471088		Clamp, Tube (2)		Appelez-nous	-
12	998682		Bend, Return (3)		Appelez-nous	-
13	484385		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	947364		Tube, Flow Divider		Appelez-nous	-
16	997669		Bend, Return (12)		Appelez-nous	-
17	858116		Sleeve (4)		Appelez-nous	-
18	475041		Grommet (4)		Appelez-nous	-
19	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
20	997286		Speed Nut		Appelez-nous	-
21	997202		Base		Appelez-nous	-
22	948809		Tube Restrictor (3)		Appelez-nous	-
23	595085		Screw, Set 5/16 X 1/4		Appelez-nous	-
24	997346		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	647618		Wheel, Blower		Appelez-nous	-
27	947029		Gasket, Terminal Cover		Appelez-nous	-
28	948810		Bend, Return (3-way)		Appelez-nous	-
29	997284		Holder, Cup		Appelez-nous	-
30	466527		Tube, Flow Divider		Appelez-nous	-
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	472046		Anticipator		Appelez-nous	-
34	472047		Clip		Appelez-nous	-
35	948130		Bushing		Appelez-nous	-
36	997285		Cup, Drain		Appelez-nous	-
37	853170		Seal		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	948922		Evaporator		Appelez-nous	-
40	484363		Xrelay		Appelez-nous	-
41	587164		Xcapacitor		Appelez-nous	-
42	484340		Xcap, Capacitor		Appelez-nous	-
43	487880		Xscrew, Sm No.10 X 5/8 (2)		Appelez-nous	-
44	41629		Xbracket, Capacitor				$ 0.81
45	90654		Multiplier, Terminal		Appelez-nous	-
46	WP965173		Xscrew, 8 X 3/8   (Replaces: 487869)			Immediately	$ 10.68
47	488660		Xnut, Speed   (Replaces: 486197)		Appelez-nous	-
48	484220		Start Assist Kit		Appelez-nous	-
48	978028		Valve, Access (1/2)		Appelez-nous	-
48	978029		Valve Access (5/8``)				$ 93.85
48	978030		Valve, Access (3/4``)				$ 123.53
48	484381		Start Kit, Compressor		Appelez-nous	-
48	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
48	45571		Xclip, Terminal (8)		Appelez-nous	-
48	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
48	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
48	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
48	978026		Valve, Access (5/16``)			Immediately	$ 121.04
48	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79

    View Diagram in Separate Window       Print Part List
