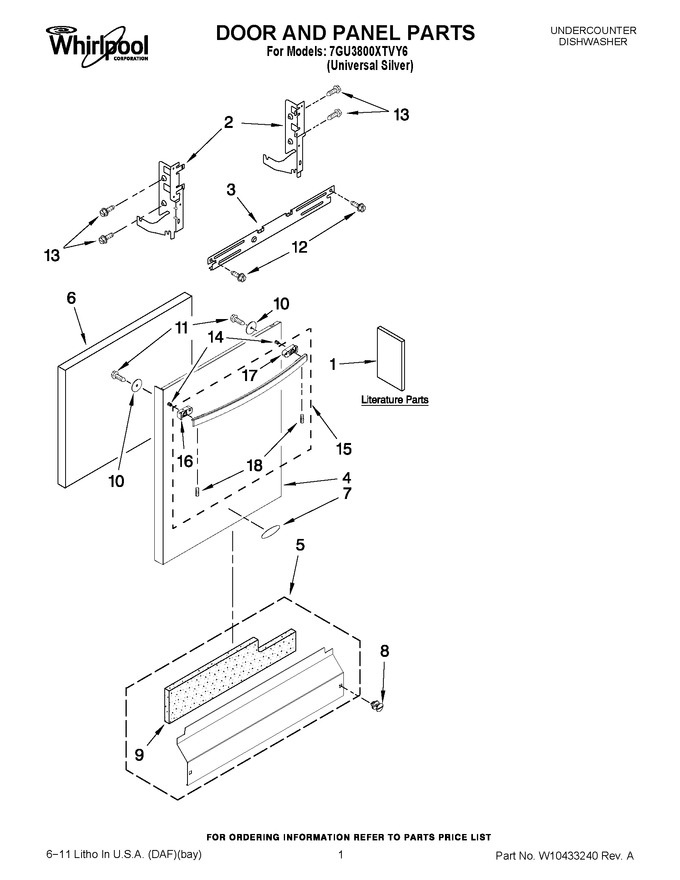

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329313		Instructions, Installation		Appelez-nous	-
1	W10205904		Guide, Use & Care		Appelez-nous	-
1	W10219586		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	8268983		Stiffener, Door				$ 38.77
4	W10142938		Panel Front Stainless (includes Items 7, 10, 11 & 14)				$ 170.59
5	W10827631		Access Panel (black)   (Replaces: W10369024)			Immediately	$ 176.08
6	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 86.61
7	W10175320		Name Plate				$ 41.71
8	WPW10503548		Fastener (black)   (Replaces: W10331789)			Immediately	$ 27.35
9	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 38.97
10	W10142904		Plate-backing				$ 50.57
11	W10123421		Screw				$ 12.83
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
13	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
14	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 17.40
15	W10142998		Handle				$ 91.71
16	W10164250		Endcap, Left Hand				$ 90.92
17	W10164249		Endcap, Right Hand				$ 49.32
18	WP8534008		Set Screw   (Replaces: 8534008)				$ 8.43
