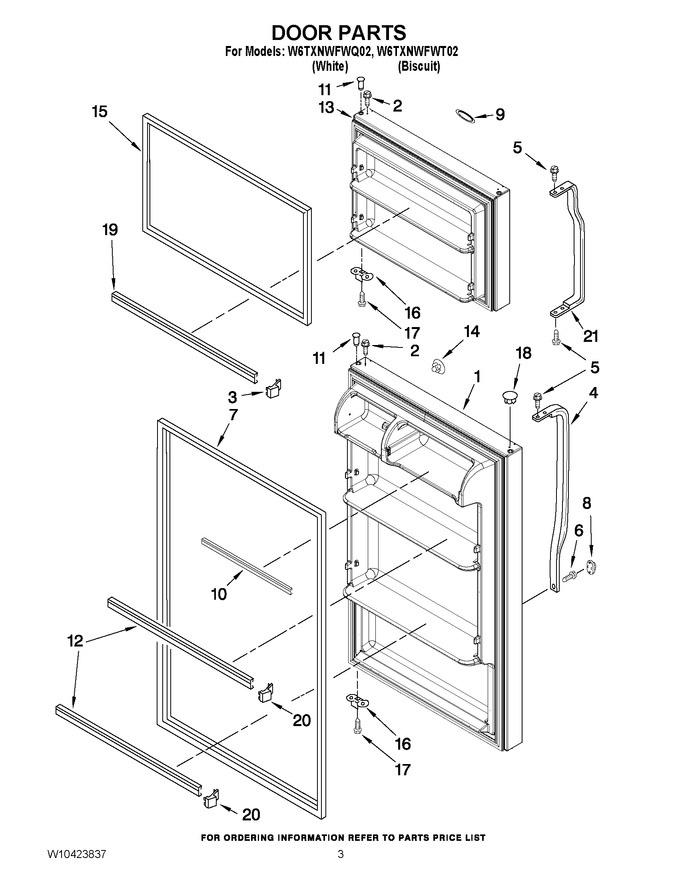

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316002T | Refrigerator Door (includes Illus. 9 & 14) (biscuit) |
|
- | |||||
| 1 | 2316002W | Refrigerator Door (includes Illus. 9 & 14) (white) |
|
- | |||||
| 2 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 3 | WP2156003 | Trim, Endcap (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 4 | WP2221946T | Handle, Refrigerator (biscuit) (Replaces: 2221946T) |
|
$ 137.03 | |||||
| 4 | WP2221946W | Handle, Refrigerator (white) (Replaces: 2221946W) |
|
Immediately | $ 117.10 | ||||
| 5 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 6 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 7 | WP2319266T | Door Gasket, Magnetic (Replaces: W10190034) |
|
$ 154.44 | |||||
| 8 | WP2202819W | Screw Cover (white) (Replaces: 2202819W) |
|
Immediately | $ 7.33 | ||||
| 8 | 2202819T | Screw Cover (biscuit) |
|
$ 8.02 | |||||
| 9 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 83.86 | ||||
| 10 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 114.61 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 12 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 100.52 | |||||
| 13 | 2263254T | Freezer Door (biscuit (includes Illus. 14 & 18)) |
|
- | |||||
| 13 | 2263254W | Freezer Door (white) |
|
- | |||||
| 14 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.17 | |||||
| 14 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 15 | WP2319263T | Door Gasket Magnetic (Replaces: W10190031) |
|
Immediately | $ 194.27 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 18 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.19 | |||||
| 18 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 19 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 20 | WP2195916K | Trim, End Cap (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 21 | WP2215015 | Handle, Freezer (biscuit) (Replaces: 2215015) |
|
$ 137.91 | |||||
| 21 | WP2202098 | Handle, Freezer (white) (Replaces: 2202098) |
|
$ 141.14 |
